Microchip Technology PIC-BLE開發板(DT100112)

Microchip Technology PIC-BLE開發板(DT100112)旨在使極低功率(XLP)無線應用程式的開發快速簡便。PIC-BLE開發板包含功能強大的PIC16LF18456微控制器(MCU)、ATEC608A CryptoAuthentication™安全元件及RN4870藍牙低功率模組。

特點

  • PIC16LF18456 XLP微控制器
  • RN4870藍牙低功率(BLE)模組
  • ATECC608A CryptoAuthentication裝置
  • Bosch Sensortec BMA253三軸加速度感應器
  • SST25PF040CT 4Mb串聯閃存記憶體
  • MCP9844高精度溫度感應器
  • mikroBUS™公座 - 可連接700多個感應器及執行器
  • 兩個使用者LED
  • 使用者按鈕
  • 板載USB介面包括：
    • Atmel Studio及Microchip MPLAB X中的板識別
    • 編程與調試
    • 虛擬COM連接埠(CDC)
    • 兩個邏輯分析器通道(DGI Debug GPIO)
    • 拖放式編程(MSD)
  • USB或CR2032電池供電

電路圖

影片

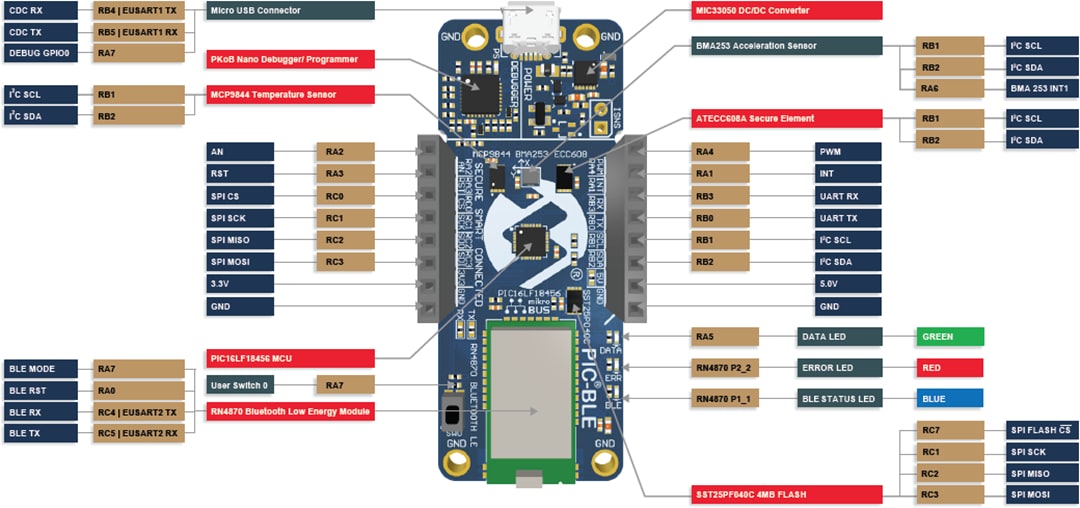

Board Layout

Microchip Technology PIC-BLE開發板(DT100112)

附件

Mikroe Click Board™

可為mikroBUS™開發板新增功能，無需進行硬體設定。
