XP Power QHL 150W/300W DC-DC Converters

XP Power QHL 150W/300W DC-DC Converters offer a compact 150W/300W DC-DC solution, 180VDC to 425VDC input range, and 3000VAC isolation with a regulated single output. These XP Power converters enable effective construction of distributed power architecture from AC front ends, PFC front ends, and battery systems. The QHL converters provide overtemperature protection, remote On/Off, -20% to 10% output trim, and operate at -40°C to 100°C temperature range. These QHL converters are available in two variants: QHL150 and QHL300.

Features

  • Isolated DC-DC converters
  • QHL150 and QHL300 variants
  • Compact 150W/300W DC-DC solution
  • 180VDC to 425VDC input range
  • 3000VAC isolation
  • Regulated single output
  • Enable effective construction of distributed power architecture
  • Provide overtemperature protection
  • Remote on/off
  • -20% to 10% output trim
  • -40°C to +100°C operating temperature range

Mechanical Diagrams

Mechanical Drawing - XP Power QHL 150W/300W DC-DC Converters
Mechanical Drawing - XP Power QHL 150W/300W DC-DC Converters

Application Circuit Diagrams

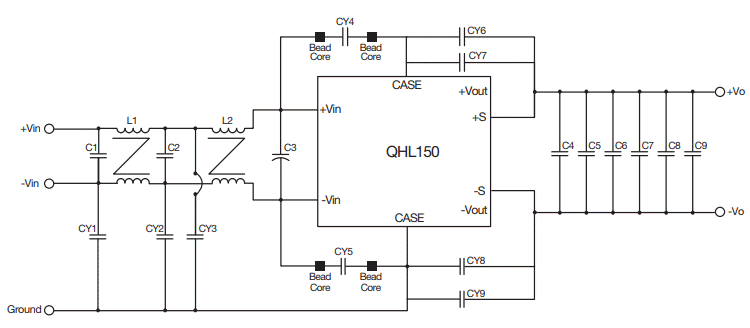

Application Circuit Diagram - XP Power QHL 150W/300W DC-DC Converters
Application Circuit Diagram - XP Power QHL 150W/300W DC-DC Converters

Related Converters

XP Power 75W to 750W Baseplate-Cooled DC-DC Converters

Baseplate-cooled DC-DC converters designed for nominal 300VDC input applications.

Learn More關於XP Power 75W to 750W Baseplate-Cooled DC-DC Converters View Products與XP Power 75W to 750W Baseplate-Cooled DC-DC Converters相關
View Results ( 9 ) Page
零件編號 規格書 說明 長度 寬度 高度 系列 輸出電流-通道1 輸出電壓-通道1 輸出功率
QHL300300S12 QHL300300S12 規格書 DC/DC 轉換器 - 通孔 DC-DC 300W 180-425VDC INPUT 1/4 BRICK 61 mm (2.402 in) 57.9 mm (2.28 in) 12.7 mm (0.5 in) QHL300 25 A 12 V 300 W
QHL150300S12 QHL150300S12 規格書 DC/DC 轉換器 - 通孔 DC-DC 150W 180-425VDC INPUT 1/4 BRICK 57.9 mm (2.28 in) 36.8 mm (1.449 in) 12.7 mm (0.5 in) QHL150 12.5 A 12 V 150 W
QHL150300S24 QHL150300S24 規格書 DC/DC 轉換器 - 通孔 DC-DC 150W 180-425VDC INPUT 1/4 BRICK 57.9 mm (2.28 in) 36.8 mm (1.449 in) 12.7 mm (0.5 in) QHL150 6.3 A 24 V 150 W
QHL150300S15 QHL150300S15 規格書 DC/DC 轉換器 - 通孔 DC-DC 150W 180-425VDC INPUT 1/4 BRICK 57.9 mm (2.28 in) 36.8 mm (1.449 in) 12.7 mm (0.5 in) QHL150 10 A 15 V 150 W
QHL150300S28 QHL150300S28 規格書 DC/DC 轉換器 - 通孔 DC-DC 150W 180-425VDC INPUT 1/4 BRICK 57.9 mm (2.28 in) 36.8 mm (1.449 in) 12.7 mm (0.5 in) QHL150 5.4 A 28 V 150 W
QHL300300S24 QHL300300S24 規格書 DC/DC 轉換器 - 通孔 DC-DC 300W 180-425VDC INPUT 1/4 BRICK 61 mm (2.402 in) 57.9 mm (2.28 in) 12.7 mm (0.5 in) QHL300 12.5 A 24 V 300 W
QHL300300S28 QHL300300S28 規格書 DC/DC 轉換器 - 通孔 DC-DC 300W 180-425VDC INPUT 1/4 BRICK 61 mm (2.402 in) 57.9 mm (2.28 in) 12.7 mm (0.5 in) QHL300 10.7 A 28 V 300 W
QHL150300S48 QHL150300S48 規格書 DC/DC 轉換器 - 通孔 DC-DC 150W 180-425VDC INPUT 1/4 BRICK 57.9 mm (2.28 in) 36.8 mm (1.449 in) 12.7 mm (0.5 in) QHL150 3.2 A 48 V 150 W
QHL300300S48 QHL300300S48 規格書 DC/DC 轉換器 - 通孔 DC-DC 300W 180-425VDC INPUT 1/4 BRICK 61 mm (2.402 in) 57.9 mm (2.28 in) 12.7 mm (0.5 in) QHL300 6.25 A 48 V 300 W
