Vishay Semiconductors TCMT111x Phototransistor Output Optocoupler

Vishay Semiconductors TCMT111x Single Channel Phototransistor Output Optocoupler consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 4-pin package. These devices have an AC isolation test voltage of 3750VRMS and a low coupling capacitance of 0.3pF (typ.). The Vishay Semiconductors TCMT111x operates in a wide ambient temperature range (Tamb) of -40°C to +110°C and a current transfer ratio (CTR) that is selected in different groups by part number.

Features

  • Wide ambient temperature range of -40°C to +110°C
  • Agency approvals
    • UL 1577
    • cUL
    • DIN EN 60747-5-5 (VDE 0884-5)
    • CQC
    • BSI
    • FIMKO
  • Low-profile package (half pitch)
  • 3750VRMS AC isolation test voltage
  • Low 0.3pF (typ.) coupling capacitance
  • Current transfer ratio (CTR) selected into groups
  • Low temperature coefficient of CTR

Applications

  • Programmable logic controllers
  • Modems
  • Answering machines
  • General applications

Specifications

  • CTR %
    • TCMT1110 (VCE = 5V, IF = 5mA): 50%/600% (min/max)
    • TCMT1113 (VCE = 5V, IF = 10mA): 100%/200% (min/max)
    • TCMT1116 (VCE = 5V, IF =5mA): 100%/300% (min/max)
    • TCMT1117 (VCE = 5V, IF = 5mA): 80%/160% (min/max)
    • TCMT1118 (VCE = 5V, IF = 5mA): 130%/260% (min/max)
    • TCMT1119 (VCE = 5V, IF = 5mA): 200%/400% (min/max)
  • 6V reverse voltage (VR)
  • 50mA forward current (IF)
  • 1.5A forward surge current (IFSM) (tP ≤ 10μs)
  • 80mW power dissipation (Pdiss)
  • +125°C junction temperature (Tj)

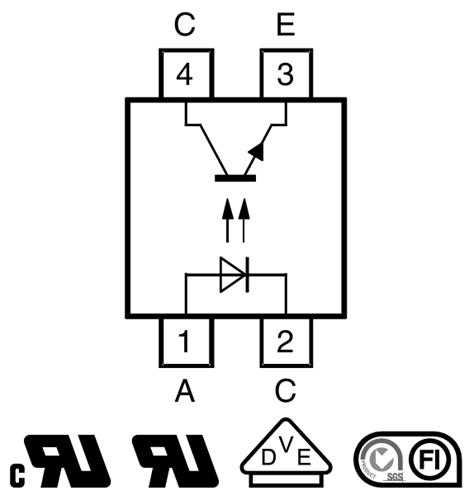

Circuit Diagram

Schematic - Vishay Semiconductors TCMT111x Phototransistor Output Optocoupler

Dimensions

Mechanical Drawing - Vishay Semiconductors TCMT111x Phototransistor Output Optocoupler
