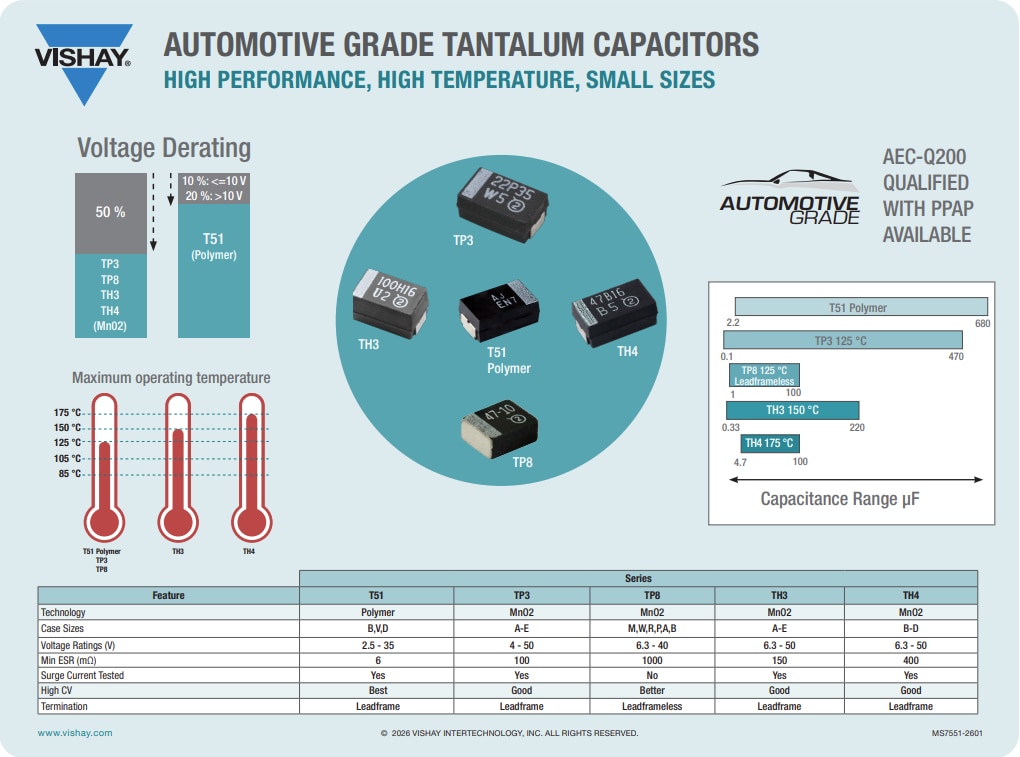

Vishay / Sprague TP3系列Tantamount®模制電容器
Vishay/Sprague的TP3 Tantamount®模製外盒電容器是堅固的鉭質表面封裝型電容器，具有以5種外盒編號及可傳送高紋波電流功能的模製外盒。另外，Vishay/Sprague的這些SMD高性能TP3系列 電容器具有-55ºC至+125ºC的操作溫度範圍，低ESR與「高流量」自動揀選及置放裝置相容，AEC-Q200認證，以及合規終端。TP3機箱大小的B、C、D和E都已進行100%電湧測試。整體來說，這些電容器符合EIA 535BAAC及指令2002/95/EC的RoHS標準。TP3電容器的電容範圍為0.10µF至470µF。
特點
- Surface mount
- High ripple current carrying capability
- Low ESR
- Compatible with high-volume automatic pick-and-place equipment
- Molded case available in five case codes
- AEC-Q200 qualified
- Compliant terminations
- Meets EIA 535BAAC
規格
- -55°C to +125°C operating temperature range (above 85°C, voltage derating is required)
- 4VDC to 50VDC voltage rating
- 0.10µF to 470µF capacitance range
- ±10%, ±20% capacitance tolerance
