u-blox SARA-R5 EVK-R5 Cellular Evaluation Kits
U-blox SARA-R5 series Cellular Evaluation Kits evaluate SARA-R5 modules with multiband LTE-M/NB-IoT cellular radio access and GNSS technology. These kits are easy to use and offer simple access to pins and features of SARA‑R5 series modules.
The u-blox SARA-R5 EVK-R5 Cellular Evaluation Kits are available in several variants, with the only difference being the specific module version installed on it, with possible related parts.
- EVK-R500S Evaluation Kit is for the evaluation of the SARA-R500S module
- EVK- R510S Evaluation Kit is for the SARA-R510S module
- EVK-R510M8S Evaluation Kit is for the SARA-R510M8S module
- EVK-SARA-R510AWS-01 Evaluation Kit is for the SARA-R510AWS-01B module
- EVK-SARA-R500E01 Evaluation Kit is for the evaluation of the SARA-R500E module
- ADP-SARA-R500E01 Adapter board for SARA-R500E-01B, connectivity for North America
Features
- u‑blox LTE Cat M1/NB2 cellular technology
- Easy to use
- Simple access to pins and features of SARA‑R5 series modules
- Extensive visualization and evaluation features
- 3 USB interfaces
- 2 cellular (1 native USB, 1 USB/UART)
- 1 GNSS
Kit Contents
- Evaluation board with a SARA-R5 series LTE-M/NB-IoT module with secure cloud and a GNSS module
- USB cable
- 1 cellular LTE antenna
- GPS/GLONASS antenna
- Power adapter
Videos

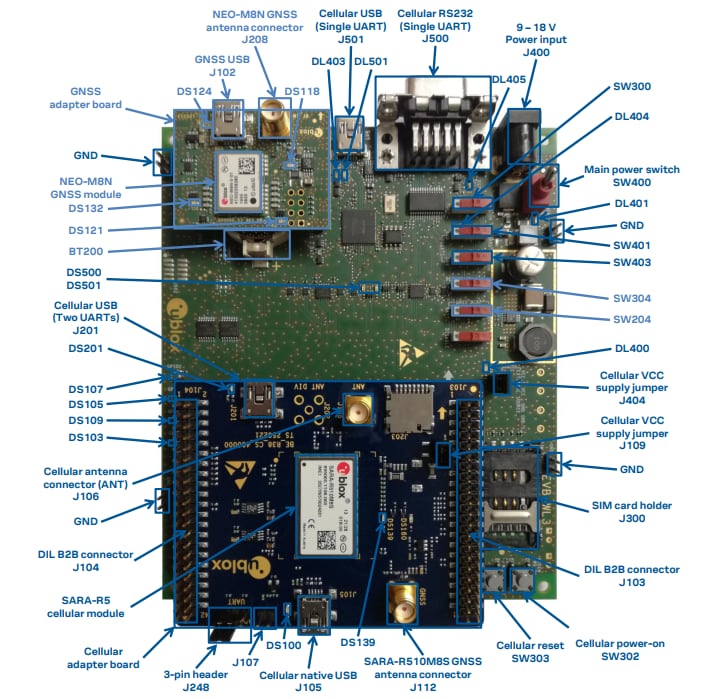

Board Layout

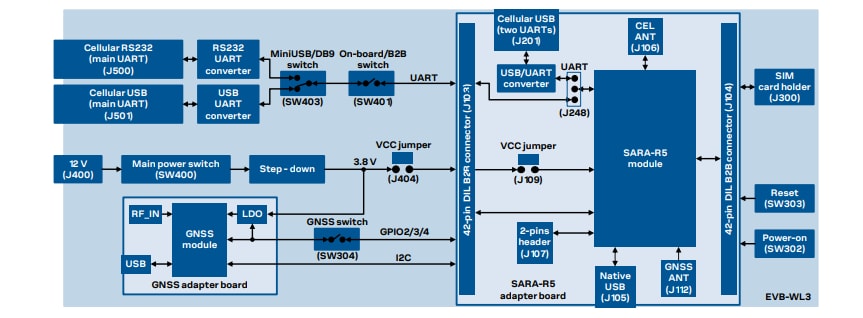

Functional Block Diagram
View Results ( 2 ) Page
| 零件編號 | 規格書 | 說明 |
|---|---|---|
| EVK-R500S-0 | 蜂窩開發工具 Evaluation kit SARA-R500 | |
| EVK-R510M8S |  |
蜂窩開發工具 Eval Kit for SARA-R510S, LTE-M and NB-IoT |
發佈日期: 2020-10-01
| 更新日期: 2025-09-11
