Power Partners PPWAM150 150W Power Supplies

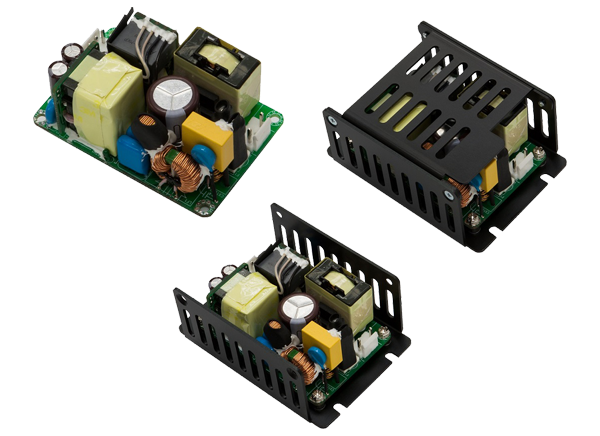

Power Partners PPWAM150 150W Power Supplies are medical- and ITE-approved AC/DC converters offering 21.18W/in3 power density. Power Partners PPWAM150 Power Supplies are available in eight standard output voltages spanning a 12V to 54V range and come in a 50.8mm x 76.2mm (2" x 3") package. The series offers up to 150W continuous throughput while maintaining Class B emissions compliance and DoE Level VI efficiency. PPWAM150 comes in open-frame, U-channel, and enclosed versions.
Features
- 21.18W/in3 power density
- U-Channel and enclosed versions
- Medical and ITE approvals
- 50.8mm x 76.2mm (2" x 3") package
- Up to 92% efficiency
- Suitable for BF Applied Part applications
- Meets DoE Level VI requirements
- <150mW no-load power consumption
- -20°C to +70°C operating temperature range
Applications
- Medical
- Patient monitoring
- Blood and infectious disease analysis
- Lab diagnostic equipment
- Hospital equipment
- Industrial
- Telecommunications equipment
- Factory automation
- Scanners
- 3D printing
Specifications
- 90VAC to 264VAC input voltage
- 47Hz to 63Hz input frequency
- Input current
- 2A maximum at 115VAC
- 1A maximum at 230VAC
- Inrush current
- 50A maximum at 115VAC
- 100A maximum at 230VAC
- >0.9 (full load) power factor
- Total output power
- 150W with 10CFM forced air
- 100W convection only
- 12VDC to 54VDC output voltage
