Texas Instruments TPSM8281xPEVM062 Evaluation Modules
Texas Instruments TPSM8281xPEVM062 Evaluation Modules are configured to evaluate the operation of the TPSM82813 and TPSM82816 power modules. The TPSM82813 and TPSM82816 are 3A and 6A pin-to-pin compatible step-down power modules with frequency synchronization in 2.5mm x 3mm x 1.95mm MagPack™ packages. The TI TPSM8281xPEVM062 evaluation modules feature a 1.8V output voltage with 1% accuracy for input voltages up to 6V and are synchronizable to an external clock.
Features
- 6A or 3A output current power module with an integrated inductor in a MagPack package
- 2.5mm x 3mm power module provides 46mm2 total solution-size with 1.95mm height
- Excellent thermal performance (θJA = 26.6°C/W for TPSM82816 and 27.4°C/W for TPSM82813)
- Synchronizable to an external clock
Applications
- Optical modules
- Tests and measurements
- Patient monitoring and diagnostics
- Wireless infrastructure
- Ruggedized communication
Associated Products
Texas Instruments TPSM82816 DC/DC Power Module
2.7V to 6V input, 6A MicroSiP™ power module with integrated inductor and frequency synchronization.
Texas Instruments TPSM8281x 4A/3A Step-Down MicroSiP™ Power Modules
Offers an integrated inductor & frequency synchronization with a frequency current-mode topology.
Associated EVMs
Texas Instruments TPSM82816EVM Evaluation Module
Designed to evaluate the TPSM82816 module with 6A step-down converter with an integrated inductor.
Texas Instruments TPSM82810EVM-089 Converter Evaluation Module (EVM)
Allows user to easily evaluate, test the operation and functionality of the TPSM82810 power module.

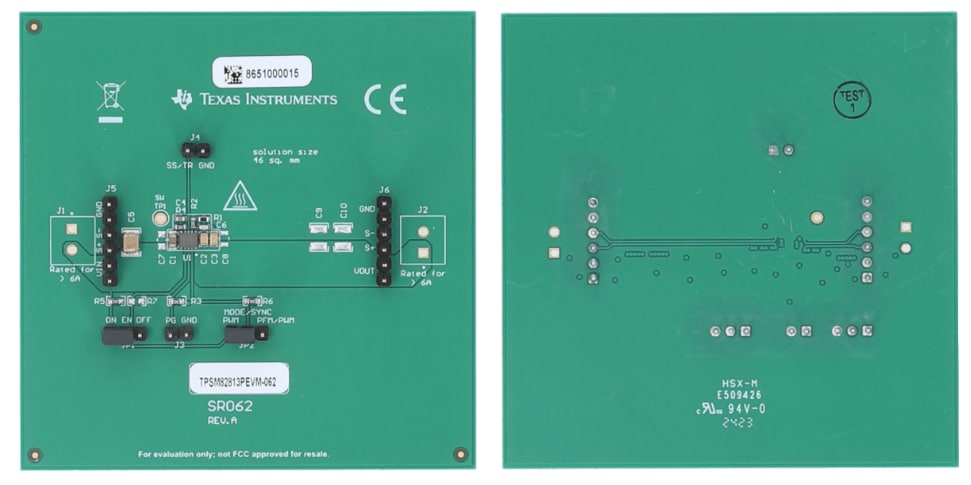

TPSM82813PEVM062 Layout
TPSM82816PEVM062 Layout
