Texas Instruments TPS650352-Q1 Automotive Power Management IC (PMIC)

Texas Instruments TPS650352-Q1 Automotive Power Management IC (PMIC) is a highly integrated PMIC for automotive camera modules. This device combines one low-dropout (LDO) regulator and three step-down converters. For connections to Power over Coax (PoC), the BUCK1 step-down converter has an input voltage range up to 18.3V. Each converter operates in a forced fixed-frequency PWM mode. The LDO operates with an input voltage range from 2.5V to 5.5V and can supply 300mA. The LDO and step-down converters have separate voltage inputs, enabling maximum design and sequencing flexibility.

The Texas Instruments TPS650352-Q1 is available in a 22-pin WQFN package (3.0mm × 3.5mm).

Features

  • Qualified for automotive applications
  • Systematic capability of up to ASIL D and SIL 3 targeted
  • Hardware integrity up to ASIL B and SIL 2 targeted
  • Three step-down converters:
    • BUCK1 VIN range from 4.0V to 18.3V
    • BUCK1 VOUT range from 2.5V to 4.0V
    • BUCK1 output current up to 1500mA
    • BUCK2 and BUCK3 VIN range from 2.5V to 5.5V
    • BUCK2 and BUCK3 VOUT range from 0.9V to 1.9V
    • BUCK2 output current up to 1200mA
    • BUCK3 output current up to 1200mA
    • Spread-spectrum clock (SSC) generation for reduced EMI
    • 2.3MHz forced fixed switching frequency PWM operation
  • Advanced diagnostics and protection
  • AEC-Q100 grade 1 qualified, with a -40°C to +125°C ambient operating temperature range
  • One low dropout (LDO) regulator
    • VIN range from 2.5V to 5.5V
    • VOUT range from 1.8V to 3.3V
    • Low noise and high PSRR
    • Adjustable output voltage through I2C
    • Up to 300mA output current
  • 3.0mm × 3.5mm 22-pin WQFN with wettable flanks

Applications

  • Automotive camera modules
    • Surround view camera modules
    • Rear view camera modules
    • Driver monitor camera modules
    • Power over coax (POC) camera modules
    • E-mirror camera modules
    • Front-view camera modules

Application Circuit

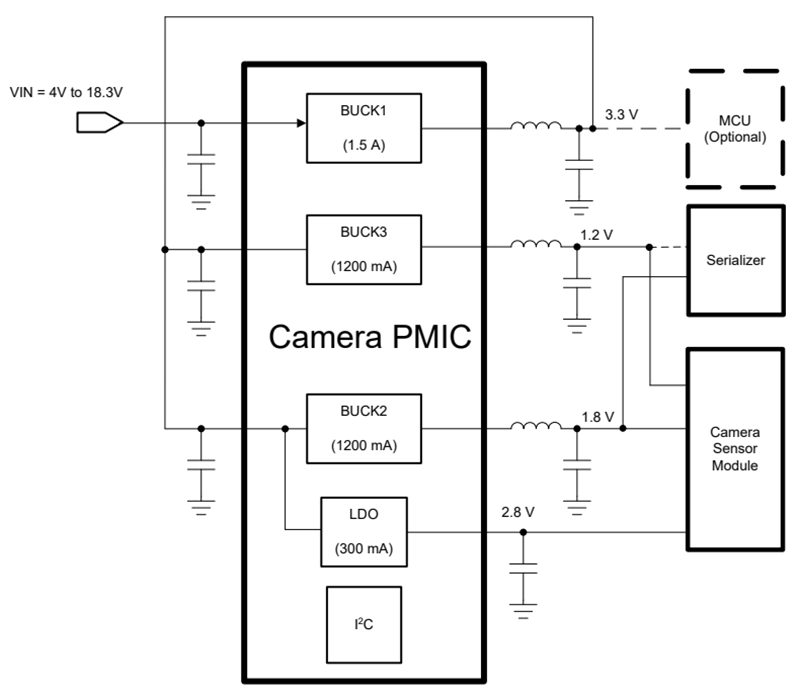

Application Circuit Diagram - Texas Instruments TPS650352-Q1 Automotive Power Management IC (PMIC)

Development Tool

Texas Instruments TPS650350Q1EVM Evaluation Module

Allows users to evaluate the TPS65035x-Q1 power management IC.
