Texas Instruments DRV8376EVM Evaluation Module
Texas Instruments DRV8376EVM Evaluation Module offers an integrated IC for three-phase motor driver applications. The device is equipped with a single-chip power stage design that allows users to drive 4.5V to 65V brushless DC motors.
The TMS320F280049C microcontroller-based board implements the TI DRV8376's hardware and has reference software that transmits essential signals to the DRV8376 to spin a 3-phase brushless-DC motor.
The GUIComposer software enables users to program settings, allow the motor to spin, and monitor the system for fault conditions.
Features
- 4.5V to 65V operating voltage (70V abs max)
- 4.5A peak high output current capability
- AVDD and GVDD regulators
- Supply and fault LEDs
- Integrated CSAs for three-phase low-side current measurement
- C2000 (LAUNCHXL-F280049C) sensored trapezoidal firmware available
Applications
- Brushless-DC (BLDC) motor modules
- HVAC motors
- Office automation machines
- Factory automation and robotics
- Wireless antenna motor
- ATMs (Automated Teller Machines)
- Drones
Kit Contents
- DRV8376EVM
- EVM Disclaimer Read Me
Associated Motor Driver
Texas Instruments DRV8376 Three-Phase Integrated FET Motor Driver
This device provides a gate drive and power stage for driving 4.5V to 65V brushless-DC motors.
Kit
Texas Instruments LAUNCHXL-F280049C LaunchPad Development Kit
Low-cost evaluation and development tool for the Piccolo F28004x series (including InstaSPIN-FOC).

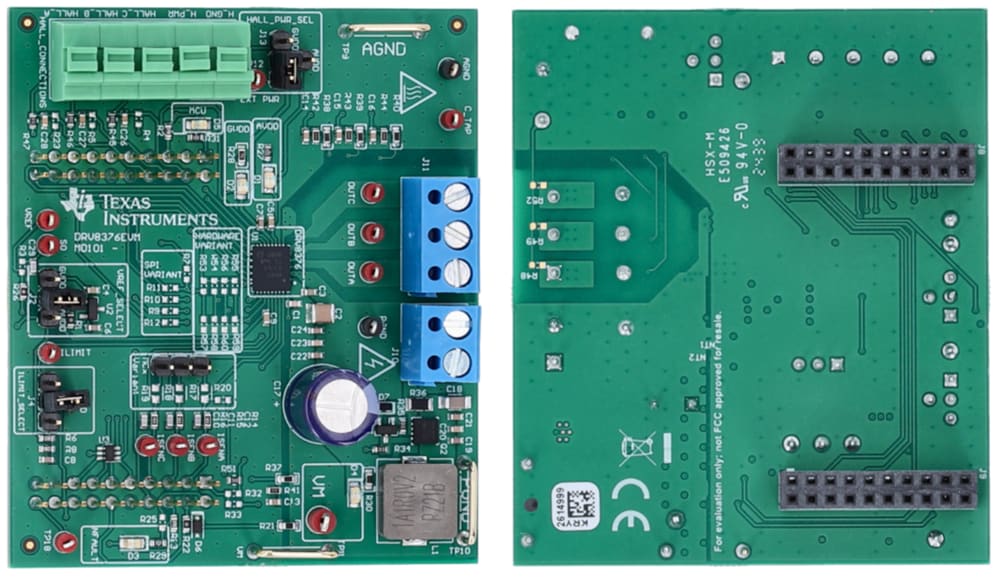

Layout

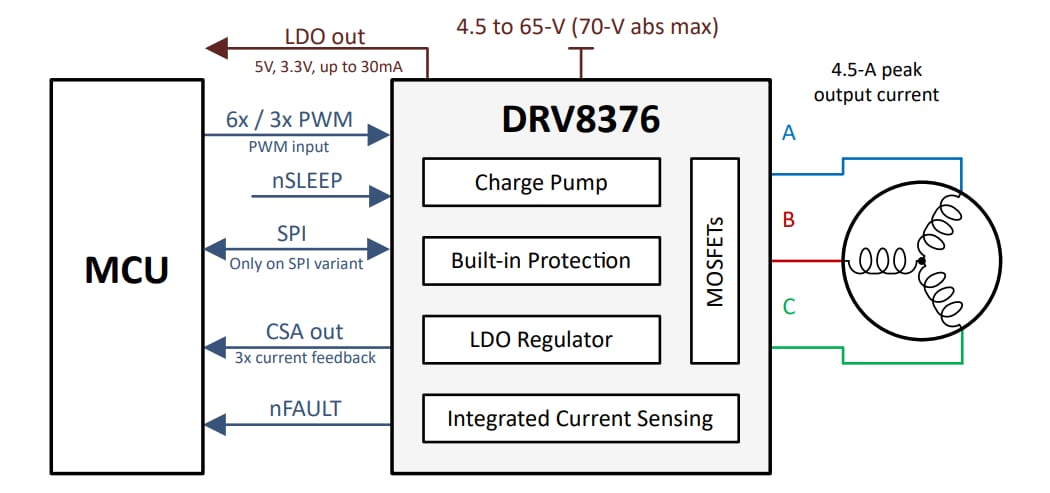

Simplified Schematic

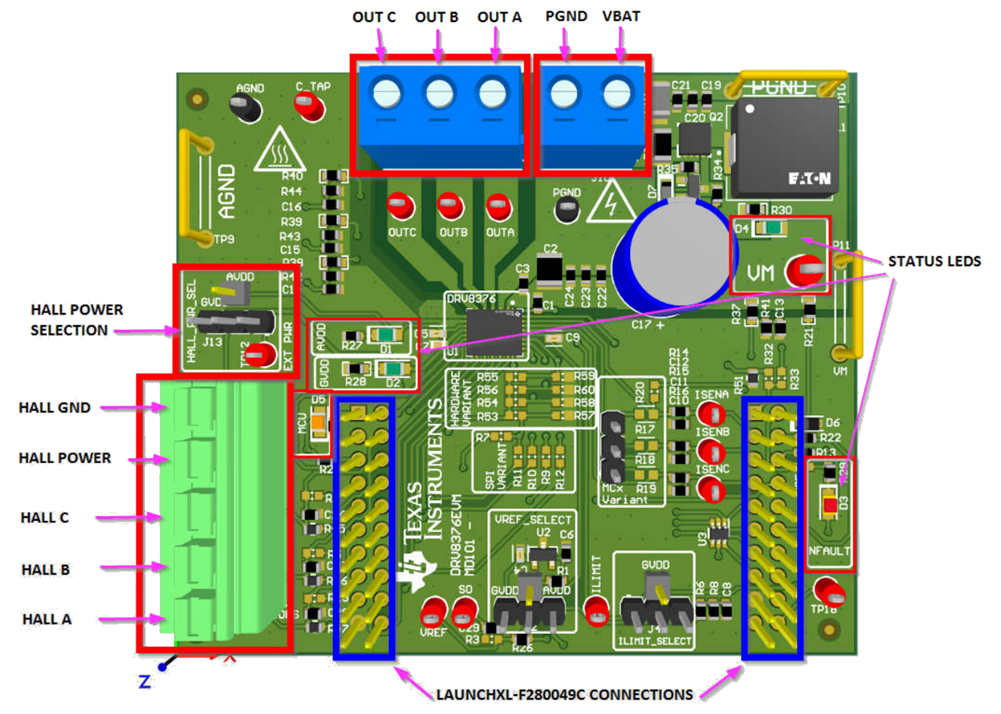

Major Hardware Blocks
DRV8376EVM LaunchXL-F280049C Connection

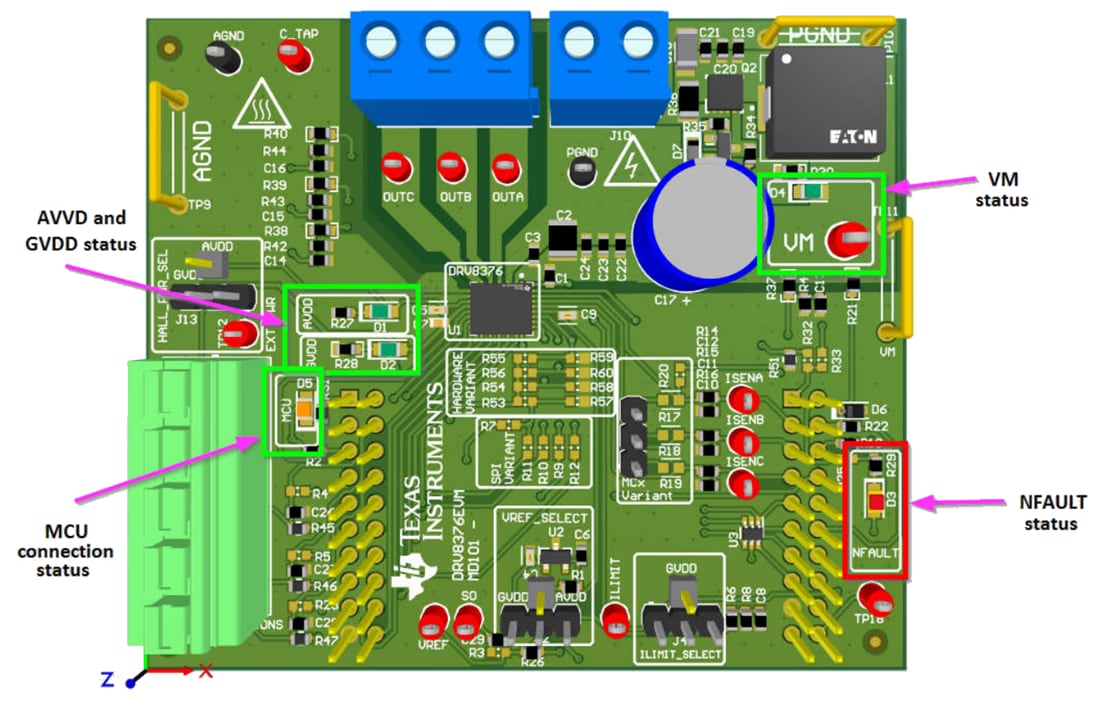

LED Indicators
