Texas Instruments DP83TC813EVM-MC Evaluation Module
Texas Instruments DP83TC813EVM-MC Evaluation Module is IEEE 802.3bw compliant and designed to support a 100Mbps speed. The DP83TC813EVM-MC provides an onboard MSP430F5528 for use with the USB2MDIO graphical user interface tool. Additionally, the TI DP83TC813EVM-MC Evaluation Module includes the DP83867 for copper (100BASE-TX) support using the RGMII MAC interface.
Features
- Industrial to single-pair Ethernet media converter
- RGMII Interface
- On-Board MSP430F5528 with USB-2-MDIO for register access
- TC10 Demonstration
- VDDMAC supply for optional power rails on MAC interface
Associated Products
Texas Instruments MSP430F5528 / MSP430F5529 Microcontrollers
Integrated USB and PHY supporting USB 2.0, 12-bit ADC, and more.
Texas Instruments DP83867千兆以太網PHY
帶整合式PMD子層的穩定、低功率、全功能型物理層收發器。

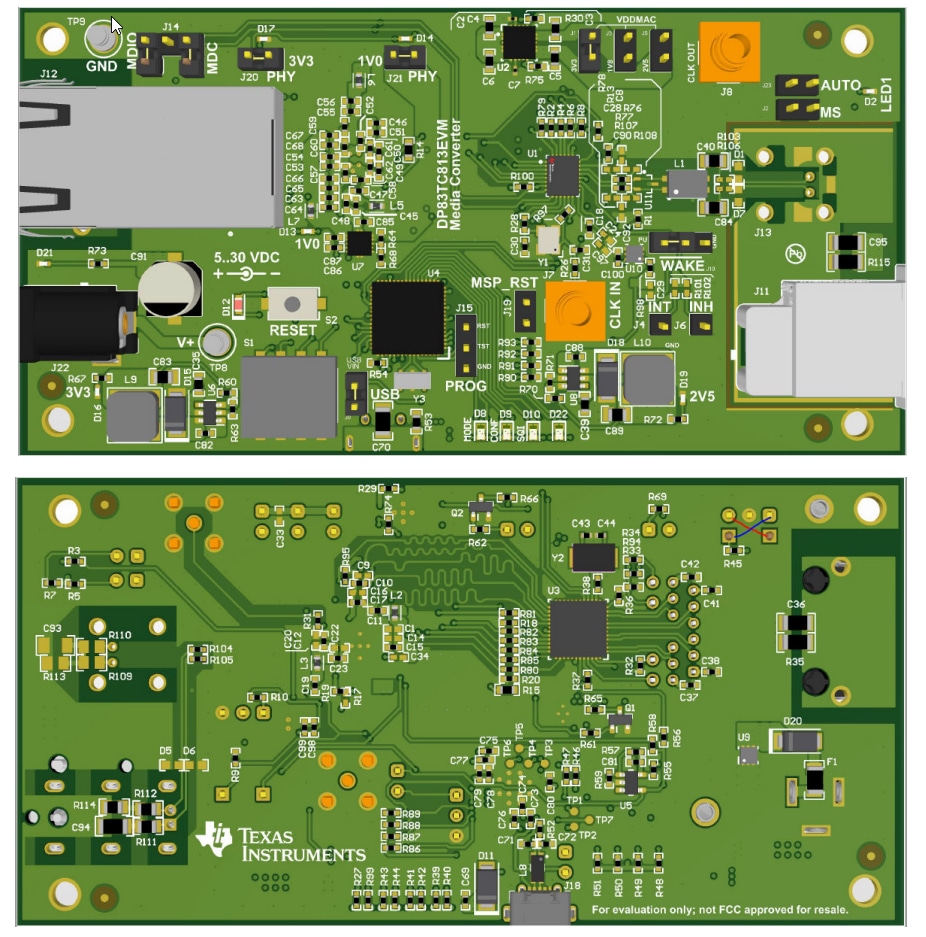

Layout

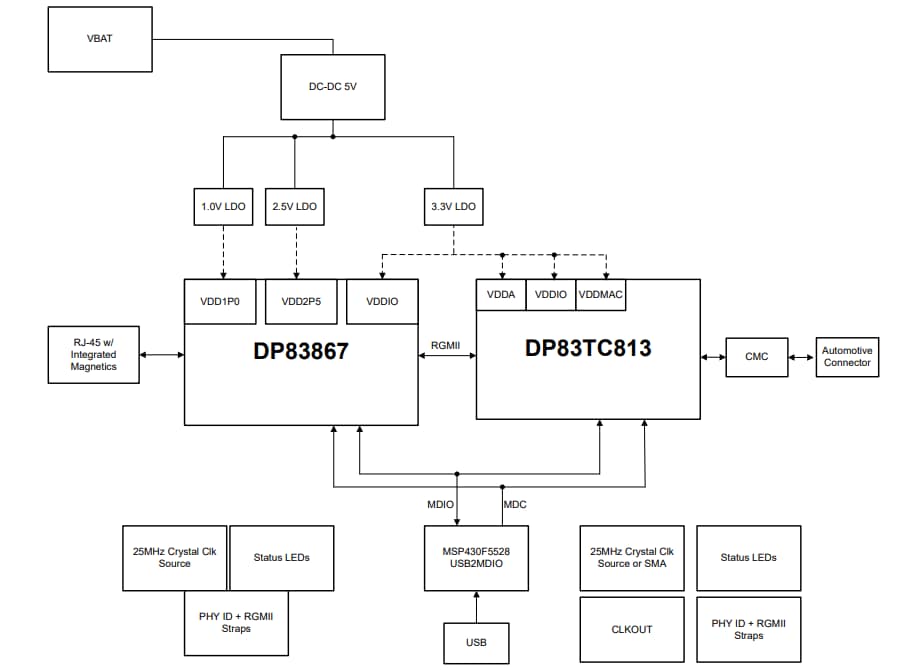

Block Diagram
