TE Connectivity CoolSplice 連接器
TE Connectivity的CoolSplice 連接器是一款獨特的線對線拼接連接器，亦可以取代一般的接線 盒。使用取得UL認證的材料構造，並且可以裝於一個16mm (5/8")的孔，來自TE的CoolSplice 連接器可輕易地用一般的鉗子安裝，不需用特別的工具。Kema和UL認可的TECoolSplice 連接器適用於工業應用、安保／警報、家庭自動化、音響、照明裝置、商用雪櫃、 展示用冷櫃、 傢俬和戶外照明的中的標準SSL照明電纜及18 AWG實心和絞線電線。

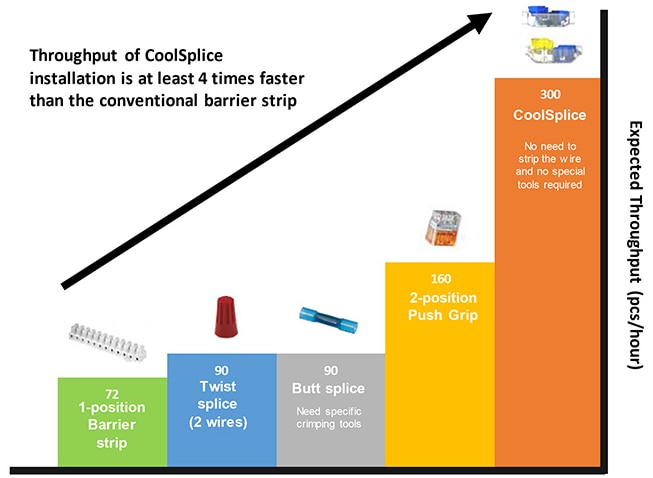

Expected Throughput
Standard
CoolSplice New Standard Connectors are suitable for splicing 22AWG to 18AWG solid and stranded wire. No special tooling is required to terminate the insulated wires, making installation fast and easy. CoolSplice connectors provide a reliable connection visually confirmed through the clear sidewall.
特點
- Enable a waterproof solution with an IP rated splice
- 2-position connector
- Wire size: 22AWG to 18AWG (0.34mm² –0.75mm²) stranded and solid wire
- Current / Voltage rating: 3.5A –5A Max at 450V AC/DC
- Time-saving termination using standard tools
- Fits through 16mm hole
應用
- Commercial refrigeration lighting
- Display and cabinet lighting
- Lighting in furniture
- Outdoor lighting
- Signs and building facade lighting
- Security and alarm systems
- Audio speaker connections
Large Wire
The connectors are suitable for larger wire sizes (12AWG to 18AWG (0.75 mm² - 4.0 mm²)). These connectors are available in red, yellow, and blue color-coded termination buttons that take the guess work out of matching wire size to appropriate connector. The connectors allow for easy factory or field installation using independent push button termination for left and right side of the connector. CoolSplice saves installation time and eliminates the need to pre-strip the wire using insulation displacement technology (IDC).
特點
- Enable a waterproof solution with an IP rated splice
- Easy factory or field installation using independent push button termination
- Save installation time and eliminate the need to pre-strip wires with insulation displacement technology (IDC)
- Inventory three P/Ns to accommodate eight different wire combinations
應用
- Outdoor lighting
- Indoor lighting fixtures
- Wiring harness field repairs
