TE Connectivity / Linx Technologies ANT‐W63-FPC Wi-Fi® 6/6E Antennas

TE Connectivity's (TE) / Linx Technologies ANT‐W63-FPC Wi-Fi® 6/6E Antennas are adhesive flexible printed circuit (FPC) antennas for Wi-Fi 6 and Wi-Fi 6E applications in the 2.4GHz, 5GHz, and 6GHz bands. The ANT‐W63-FPC Antennas provide a ground plane independent dipole internal/embedded antenna solution. The flexibility and adhesive backing makes the ANT-W63-FPC-SH series easy to mount in RF transparent plastic enclosures, enabling environmental sealing and protection from antenna damage.

The TE Connectivity / Linx Technologies ANT‐W63-FPC Wi-Fi® 6/6E Antennas are offered in three sizes

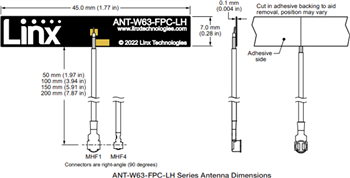

ANT-W63-FPC-LH measures 45mm x 7mm
ANT-W63-FPC-SAH measures 12mm x 12mm
ANT-W63-FPC-SH measures 25mm x 20mm

The ANT‐W63-FPC Antennas are connected to the radio via a coaxial cable terminated in an MHF1/U.FL-type plug (female socket) or MHF4 plug (female socket) connector. Each variant is available with either a 50mm, 100mm, 150mm, or 200mm cable.

Features

Ground plane independent dipole antenna
Performance at 2.4GHz to 2.5GHz
- ANT-W63-FPC-LH
  - ≤1.4 VSWR
  - 4.5dBi peak gain
  - 90% efficiency
- ANT-W63-FPC-SAH
  - ≤3.4 VSWR
  - 7.2dBi peak gain
  - 64% efficiency
- ANT-W63-FPC-SH
  - ≤1.8 VSWR
  - 5.5dBi peak gain
  - 85% efficiency

Compact, low-profile
Dimensions
- ANT-W63-FPC-LH: 45mm x 7mm
- ANT-W63-FPC-SAH: 12mm x 12mm
- ANT-W63-FPC-SH: 25mm x 20mm
Adhesive backing permanently adheres to non-metal enclosures using 3M 467MP™/200MP adhesive
Flexible to fit in challenging enclosures
U.FL and MHF4 connection options
50mm, 100mm, 150mm, and 200mm cable length options
