Taiwan Semiconductor TST Trench Schottky Rectifiers

Taiwan Semiconductor TST Trench Schottky Rectifiers offer excellent high-temperature stability, high efficiency, and high forward surge capability. These rectifiers feature a maximum mounting torque of 0.56Nm and operate within the -55°C to 150°C temperature range. The TST trench Schottky rectifiers come in a TO-220AB case and are RoHS-compliant and halogen-free. These rectifiers meet the JESD 201 class 2 whisker test, and the molding compound meets UL 94V-0 flammability rating. Typical applications include Switched Mode Power Supply (SMPS), adapters, and DC-to-DC converters.

Features

Excellent high-temperature stability
Low power loss, high efficiency
High forward surge capability

Specifications

0.56Nm maximum mounting torque
-55°C to 150°C operating temperature range
TO-220AB case
Molding compound meets UL 94V-0 flammability rating

Meet JESD 201 class 2 whisker test
RoHS-compliant
Halogen-free according to IEC 61249-2-21

Applications

Switched Mode Power Supply (SMPS)
Adapters
DC-to-DC converters

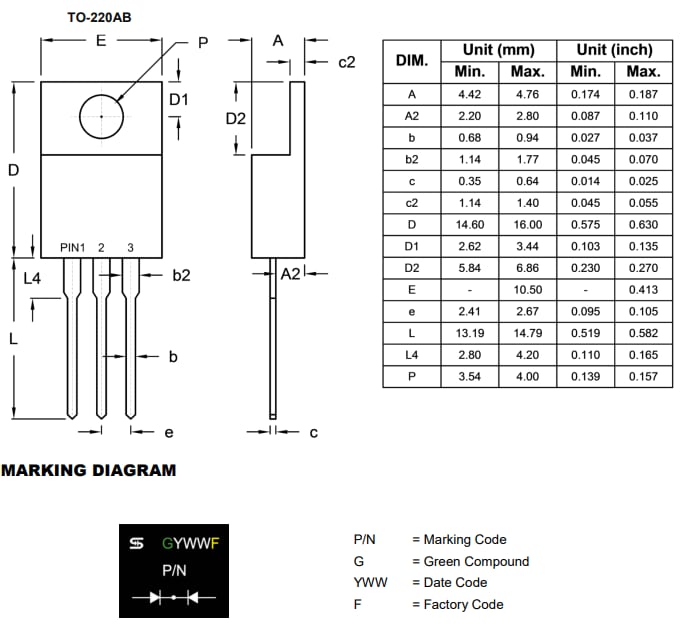

Package Outline Dimensions

Mechanical Drawing - Taiwan Semiconductor TST Trench Schottky Rectifiers

View Results ( 18 ) Page

零件編號	說明	If - 順向電流	Vrrm - 重複反向電壓	Vf - 順向電壓	Ifsm - 順向浪湧電流	Ir - 反向電流	Vr - 反向電壓
TST10102C	肖特基二極體及整流器 10A, 100V, Trench Schottky	10 A	100 V	700 mV	180 A	50 uA	70 V
TST10122C	肖特基二極體及整流器 10A, 120V, Trench Schottky	10 A	120 V	800 mV	170 A	50 uA	84 V
TST20102C	肖特基二極體及整流器 20A, 100V, Trench Schottky	20 A	100 V	780 mV	215 A	50 uA	70 V
TST20122C	肖特基二極體及整流器 20A, 120V, Trench Schottky	20 A	120 V	850 mV	210 A	50 uA	84 V
TST30122C	肖特基二極體及整流器 30A, 120V, Trench Schottky	30 A	120 V	880 mV	260 A	50 uA	84 V
TST40122C	肖特基二極體及整流器 40A, 120V, Trench Schottky	40 A	120 V	850 mV	350 A	50 uA	84 V
TST10H45C	肖特基二極體及整流器 10A, 45V, Trench Schottky
TST10H60C	肖特基二極體及整流器 10A, 60V, Trench Schottky
TST20H45C	肖特基二極體及整流器 20A, 45V, Trench Schottky
TST20H60C	肖特基二極體及整流器 20A, 60V, Trench Schottky
