Semtech SX1508 & SX1509 Evaluation Kits
Semtech SX1508/09 Evaluation Kits provide an evaluation platform for the SX1507/8/9 family of Ultra-Low Voltage Level-Shifting GPIOs with LED drivers and keypad engines. The GPIOs connect directly with low core voltage baseband chipsets in battery-powered, handheld applications avoiding level translating circuits, minimizing cost and board space.
Kit Contents
- SX1508EVK or SX1509EVK board
- SX1508EVK or SX1509EVK CDROM including all necessary PC software and documentation (requires Windows XP minimum)
- Mini USB cable to connect the board to the PC

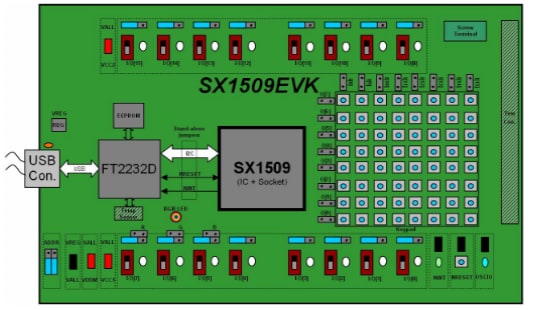

SX1508 and SX1509 Board Overview
Related GPIOs
Semtech SX1508B & SX1509B Ultra-Low Voltage GPIOs
Ideal for low power handheld battery-powered equipment.
View Results ( 2 ) Page
| 零件編號 | 規格書 | 說明 | 評估工具 | 系列 | 工作電源電壓 |
|---|---|---|---|---|---|
| SX1509BEVK | 介面開發工具 SX1509B EVALUATION K | SX1509BIULTRT | SX1509 | 3.3 V | |
| SX1508BEVK |  |
介面開發工具 SX1507B/SX1508B EVAL | SX1508BIULTRT | SX1508 | 3.3 V |
發佈日期: 2015-10-29
| 更新日期: 2022-03-11
