Vishay General Semiconductor High Current Density/Voltage Schottky Rectifiers

Vishay General Semiconductor High Current Density, Surface-Mount, High Voltage Schottky Rectifiers deliver robust performance for demanding power‑conversion applications. These rectifiers are available in a low‑profile SMPC (TO‑277A) package with a typical height of 1.1mm, making the rectifiers well‑suited for automated assembly and compact power‑supply designs. The Vishay components incorporate guard‑ring overvoltage protection and high‑barrier Schottky technology, enabling high reliability, low leakage current, and operation at junction temperatures up to +175°C.

Across the series, devices offer a range of average forward current capabilities (5A to 25A) with repetitive reverse voltages up to 100V, fast recovery behavior, and strong surge‑current endurance. These characteristics make the series ideal for high‑frequency rectification in switching power supplies, freewheeling diodes, DC/DC converters, and polarity‑protection circuits. Mechanical construction meets UL 94V‑0 flammability ratings, while matte‑tin‑plated leads ensure solderability to industry standards. Many variants also offer AEC‑Q101‑qualified automotive‑grade options. Overall, the Vishay General Semiconductor High Current Density, Surface-Mount, High Voltage Schottky Rectifiers provide a versatile portfolio of rugged, efficient rectifiers optimized for modern, space‑constrained power‑electronics applications.

Features

  • Very low profile - 1.1mm typical height
  • Ideal for automated placement
  • Guard ring for overvoltage protection
  • High barrier technology, TJ = +175°C maximum
  • Low leakage current
  • Single circuit configuration
  • Enhanced for high surge endurance
  • Meets Moisture Sensitivity Level (MSL) 1 per J-STD-020, LF maximum peak of +260°C
  • AEC-Q101 qualified available (base P/NHM3)
  • Lead-free, Halogen-free, and RoHS-compliant

Applications

  • Switch-mode power supplies
  • Freewheeling diodes
  • DC/DC converters
  • Polarity protection

Specifications

  • 100V repetitive reverse voltage
  • 20nA to 100nA reverse current range
  • 5A to 25A forward current range
  • 85A to 950A forward surge current range
  • 800mV or 810mV forward voltage options
  • -40°C to +175°C operating temperature range
  • SMPC (TO-277A) package
  • UL 94V-0 flammability-rated molding compound
  • Terminals
    • Matte tin-plated leads, solderable per J-STD-002 and JESD 22-B102
    • Meets JESD 201 class 2 whisker test

Schematic

Schematic - Vishay General Semiconductor High Current Density/Voltage Schottky Rectifiers

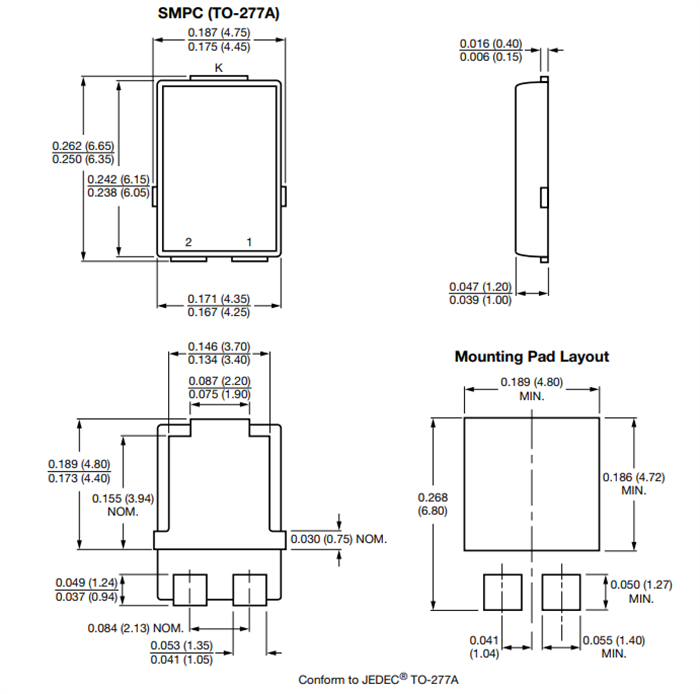

Dimensions: in (mm)

Mechanical Drawing - Vishay General Semiconductor High Current Density/Voltage Schottky Rectifiers

Related Modules

Vishay High Performance Schottky Modules

Optimized for low reverse leakage at high temperature.

Learn More關於Vishay High Performance Schottky Modules View Products與Vishay High Performance Schottky Modules相關
View Results ( 14 ) Page
零件編號 規格書 If - 順向電流 Ifsm - 順向浪湧電流 Ir - 反向電流 Vf - 順向電壓
SS15PH102HM3/I SS15PH102HM3/I 規格書 15 A 280 A 40 nA 800 mV
SS25PH102-M3/I SS25PH102-M3/I 規格書 25 A 405 A 100 nA 800 mV
SS25PH102HM3/I SS25PH102HM3/I 規格書 25 A 405 A 100 nA 800 mV
SS20PH102-M3/I SS20PH102-M3/I 規格書 20 A 310 A 100 nA 800 mV
SS20PH102HM3/I SS20PH102HM3/I 規格書 20 A 310 A 100 nA 800 mV
SS10PH102-M3/I SS10PH102-M3/I 規格書 10 A 180 A 20 nA 810 mV
SS10PH102HM3/I SS10PH102HM3/I 規格書 10 A 180 A 20 nA 810 mV
SS12PH102-M3/I SS12PH102-M3/I 規格書 12 A 950 A 30 nA 810 mV
SS12PH102HM3/I SS12PH102HM3/I 規格書 12 A 950 A 30 nA 810 mV
SS15PH102-M3/I SS15PH102-M3/I 規格書 15 A 280 A 40 nA 800 mV
