Schurter 2570 IEC Appliance Terminals

Schurter 2570 IEC Appliance Terminals are designed to allow connections to the equipment circuitry using a separate detachable AC line cord. These Schurter terminals have a high-quality Polyamide 6 (PA6) housing which has a flammability rating of UL 94V-0. The 2570 terminals have an operating temperature range of -25°C to +70°C, a panel thickness of 0.6mm to 2mm for snap-in, and 1.5mm for split-panel. These terminals are available in inlet C8 solder, quick connect, and PCB variants and are suitable for appliances with protection class II.

Features

  • 2.5A / 250VAC @ 50Hz IEC rating
  • UL/CSA rating
    • 2.5A / 250VAC @ 60Hz
    • 7A / 125VAC @ 60Hz
  • Dielectric strength
    • >2.5kVAC between L-N
    • >3kVAC between L/N-PE
  • -25°C to +70°C operating temperature range
  • Solder, quick connect, or PCB terminal
  • Insulation cover is suitable for appliances with protection class II
  • Panel thickness
    • 0.6mm to 2mm for snap-in
    • 1.5mm for split-panel

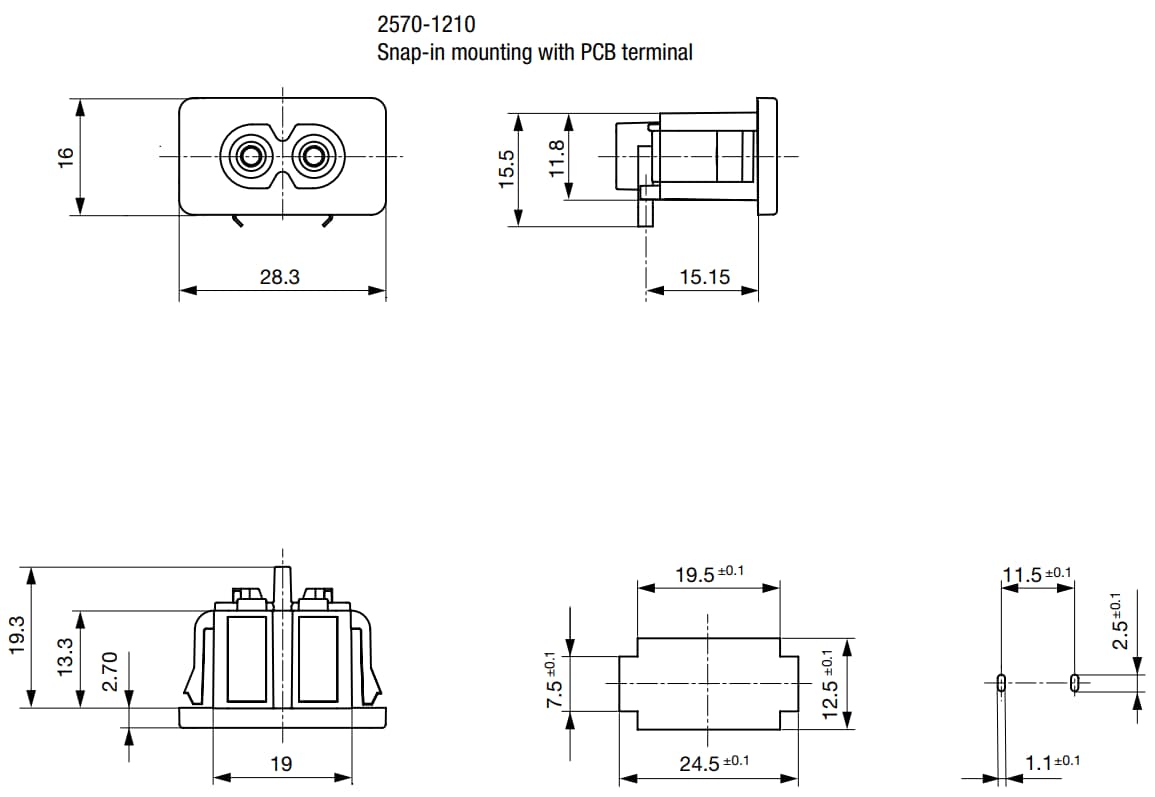

Terminal Dimensions (mm)

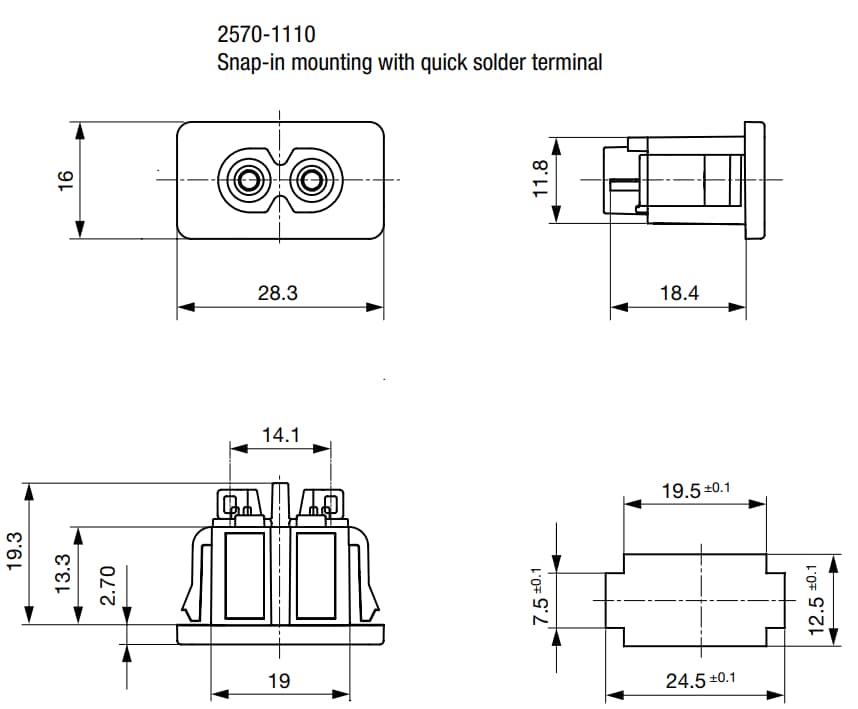

Mechanical Drawing - Schurter 2570 IEC Appliance Terminals

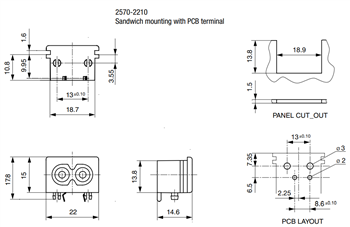

Mechanical Drawing - Schurter 2570 IEC Appliance Terminals

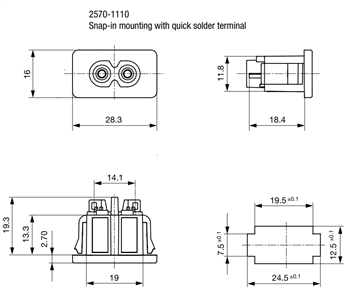

Mechanical Drawing - Schurter 2570 IEC Appliance Terminals

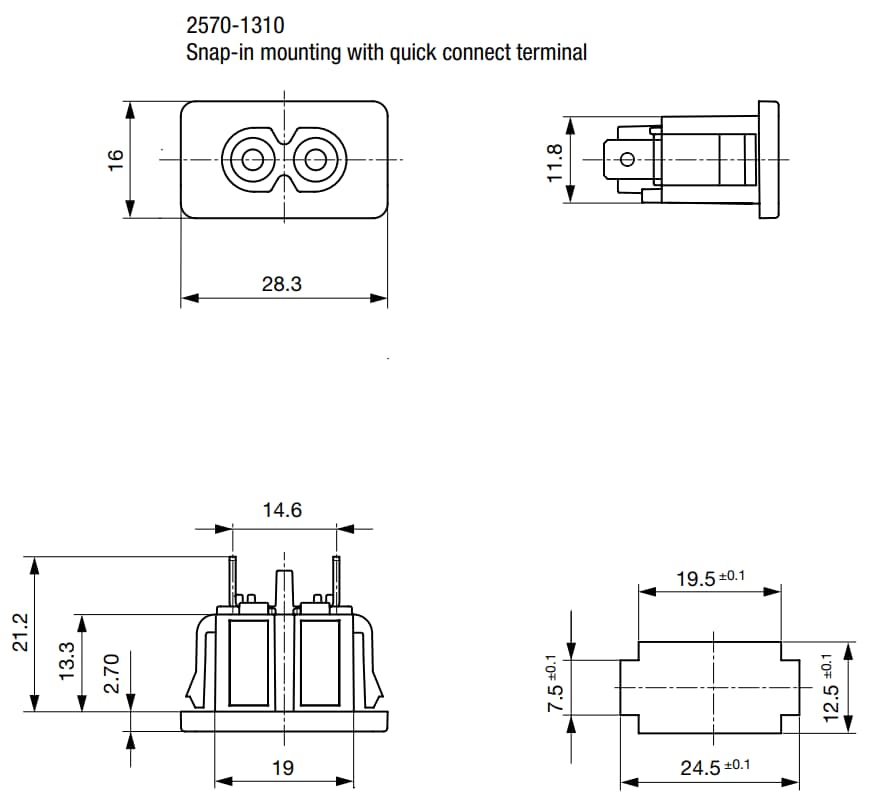

Mechanical Drawing - Schurter 2570 IEC Appliance Terminals
View Results ( 4 ) Page
零件編號 終端類型 說明
4300.0102 Solder Terminal AC電源輸入模塊 APPLIANCE INLET C8 SOLDER TERMINAL
4300.0105 Quick Connect AC電源輸入模塊 APPLIANCE INLET C8 QUICK CONNECT TERMNL
4300.0103 Solder Tab AC電源輸入模塊 APPLIANCE INLET C8 PCB TERMINAL SNAP N
4300.0104 Solder Tab AC電源輸入模塊 APPLIANCE INLET C8 PCB TERMINAL SANWICH
