Sanyo Denki San Ace 92AD 9AD High Airflow ACDC Fans

Sanyo Denki San Ace 92AD 9AD High Airflow ACDC Fans feature high static pressure up to 76Pa and airflow up to 47.3CFM. These fans offer a wide input voltage range of 100VAC to 240VAC. The 92AD 9AD ACDC fans have a long service life and consume less power during operation. These fans are constructed with UL 94V‑0 flame‑retardant plastics and operate within the -20°C to 70°C temperature range. The 92AD 9AD ACDC fans are available with low-speed sensors, without sensors, and pulse sensors with PWM control variants. Typical applications include cooling servers, telecom equipment racks, and control panels.

Features

  • Up to 76 Pa high static pressure
  • Up to 47.3CFM airflow
  • 100VAC to 240VAC wide input voltage range
  • 60,000h expected life at 60°C
  • ≥10MΩ insulation resistance @ 500VDC
  • Locked‑rotor burnout protection
  • Defined dielectric strength
  • Frame and impeller use UL 94V‑0 flame‑retardant plastics
  • Low‑speed sensor or pulse sensor with 25kHz PWM control
  • -20°C to 70°C operating temperature range
  • 92mm × 92mm × 25mm dimensions

Applications

  • Cooling servers
  • Telecom equipment racks
  • Control panels

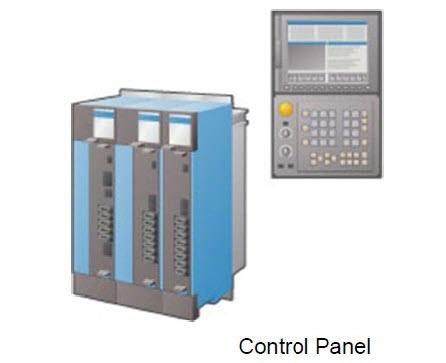

Application Example - Control Panel

Sanyo Denki San Ace 92AD 9AD High Airflow ACDC Fans

Connection Schematic

Schematic - Sanyo Denki San Ace 92AD 9AD High Airflow ACDC Fans

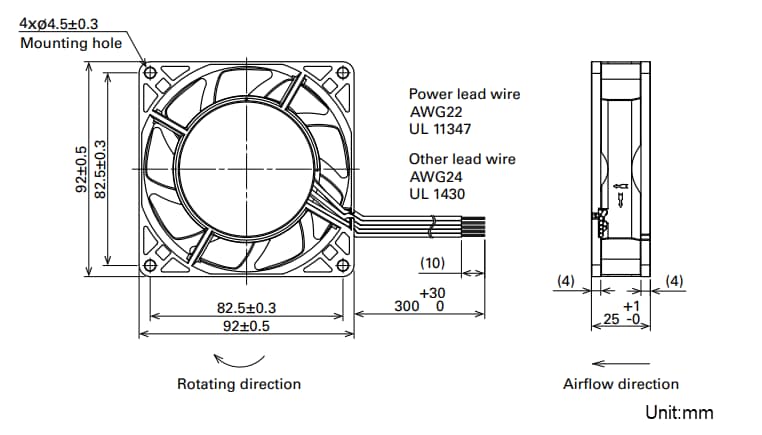

Dimensional Diagram

Mechanical Drawing - Sanyo Denki San Ace 92AD 9AD High Airflow ACDC Fans

Related Products

Sanyo Denki San Ace 92GA Type Low Power Consumption Fans

Large airflow, high static pressure, and low noise fans.

Learn More關於Sanyo Denki San Ace 92GA Type Low Power Consumption Fans View Products與Sanyo Denki San Ace 92GA Type Low Power Consumption Fans相關

Sanyo Denki 9LG High Air Flow, Long Life Fans

Features an improved lifespan of 1.8x standard models, high airflow, and low power consumption.

Learn More關於Sanyo Denki 9LG High Air Flow, Long Life Fans View Products與Sanyo Denki 9LG High Air Flow, Long Life Fans相關

Sanyo Denki San Ace 120AD 9AD 120x25mm High Airflow ACDC Fans

Feature up to 62Pa maximum high static pressure and 100VAC to 240VAC input voltage range.

Learn More關於Sanyo Denki San Ace 120AD 9AD 120x25mm High Airflow ACDC Fans View Products與Sanyo Denki San Ace 120AD 9AD 120x25mm High Airflow ACDC Fans相關

Additional Resources

View Results ( 9 ) Page
零件編號 氣流 深度 導線長度 噪音 工作電源電壓 額定功率 壓力類型 框架尺寸 - mm
9AD0901P4G001 47.3 CFM 25 mm 300 mm 43 dBA 90 VAC to 264 VAC 3.2 W 76 Pa 92 mm x 92 mm x 25 mm
9AD0901G4002 47.3 CFM 25 mm 300 mm 43 dBA 90 VAC to 264 VAC 3.2 W 76 Pa 92 mm x 92 mm x 25 mm
9AD0901G4H001 47.3 CFM 25 mm 300 mm 43 dBA 90 VAC to 264 VAC 3.2 W 76 Pa 92 mm x 92 mm x 25 mm
9AD0901H4002 38.8 CFM 25 mm 300 mm 38 dBA 90 VAC to 264 VAC 2.3 W 52 Pa 92 mm x 92 mm x 25 mm
9AD0901H4H001 38.8 CFM 25 mm 300 mm 38 dBA 90 VAC to 264 VAC 2.3 W 52 Pa 92 mm x 92 mm x 25 mm
9AD0901L4002 22.6 CFM 25 mm 300 mm 24 dBA 90 VAC to 264 VAC 1.1 W 19 Pa 92 mm x 92 mm x 25 mm
9AD0901L4H001 22.6 CFM 25 mm 300 mm 24 dBA 90 VAC to 264 VAC 1.1 W 19 Pa 92 mm x 92 mm x 25 mm
9AD0901M4002 34.2 CFM 25 mm 300 mm 34 dBA 90 VAC to 264 VAC 1.7 W 40 Pa 92 mm x 92 mm x 25 mm
9AD0901M4H001 34.2 CFM 25 mm 300 mm 34 dBA 90 VAC to 264 VAC 1.7 W 40 Pa 92 mm x 92 mm x 25 mm
