Raspberry Pi 5台單板電腦
Raspberry Pi 5 Single Board Computers offer two to three times the speed of other generations. The Pi 5 is a full-size Raspberry Pi computer developed with silicon in-house. The device delivers faster transfer speed to external UAS drives and other high-speed peripherals. Two four-lane MIPI interfaces support any combination of up to two cameras or displays. Meanwhile, peak SD card performance is doubled via support for the SD104 high-speed mode. The Pi 5 Single Board Computer enables a single-lane PCI Express 2.0 interface, which permits connecting higher-bandwidth peripherals. The Raspberry Pi 5 is offered in 4GB and 8GB variants and features dual-band 802.11ac Wi-Fi® and BLUETOOTH® 5.0 / Bluetooth Low Energy connectivity.特點
- Broadcom BCM2712 2.4 GHz四核心64位元Arm® Cortex®-A76 CPU,具有加密擴展,每個核心具備512 KB的L2快取,共用2 MB的L3快取
- VideoCore VII GPU,支援OpenGL ES 3.1、Vulkan 1.2
- 雙4Kp60 HDMI®顯示器輸出,支援HDR
- 4Kp60 HEVC解碼器
- LPDDR4X-4267 SDRAM(啟動時提供4 GB及8 GB SKU)
- 雙頻802.11ac Wi-Fi
- 藍牙5.0/藍牙低功耗 (BLE)
- microSD記憶卡插槽,支援高速SDR104模式
- 2x USB 3.0連接埠,同時支援5 Gbps作業
- 2x USB 2.0連接埠
- Gigabit Ethernet,支援PoE+(需要獨立的PoE+ HAT)
- 2× 4通道MIPI攝影機/顯示器收發器
- 1個PCIe 2.0介面,可連接快速周邊裝置(需要獨立的M.2 HAT或其他轉接器)
- 透過USB-C™供應5V/5A DC電源,可支援供電
- Raspberry Pi標準40腳位插頭
- 即時時鐘 (RTC),由一個外部電池供電
- 電源按鈕
影片

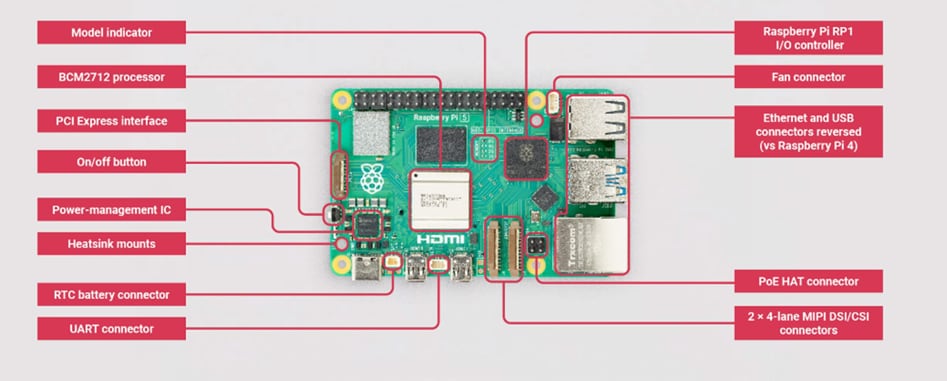

硬體概覽
PCB頂部佈局
PCB底部佈局

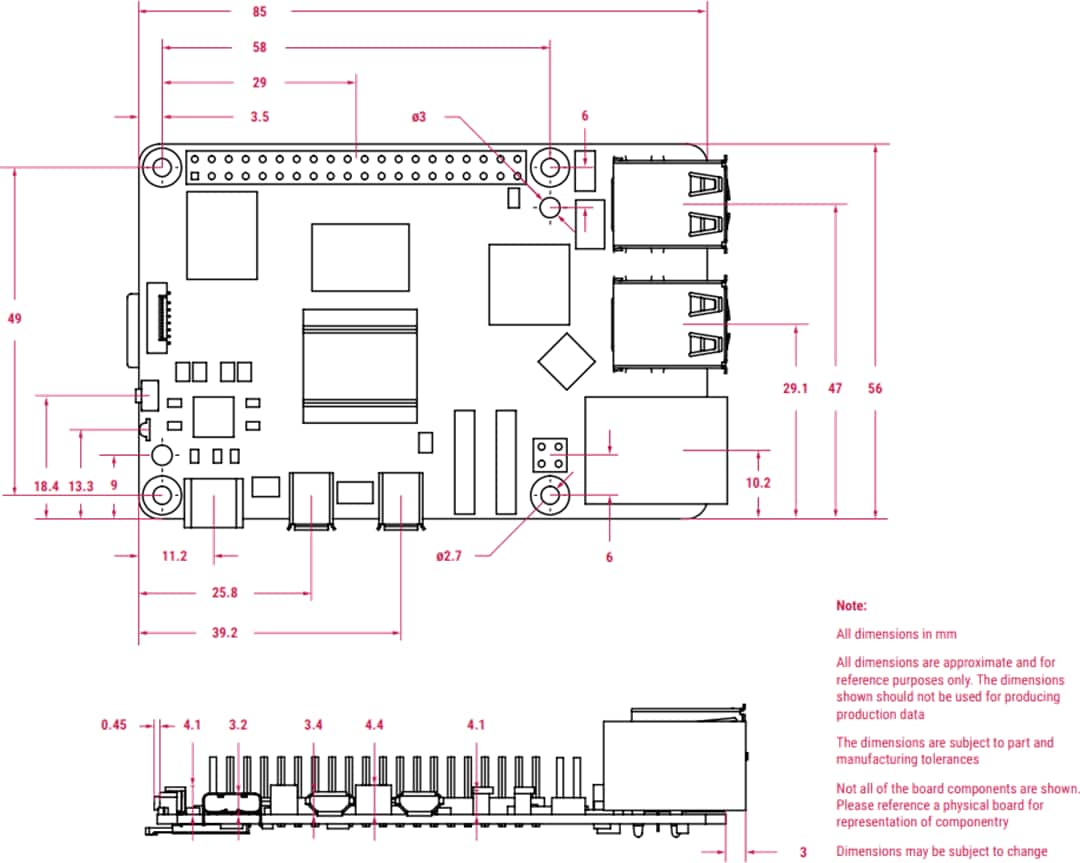

尺寸
資訊圖表
