Qorvo TGA2578 Wideband Power Amplifier

Qorvo TGA2578 Wideband Power Amplifier is based on a TQGaN25 0.25um GaN on SiC process. With an operating range from 2GHz to 6GHz, the TGA2578 delivers 30W saturated output power with a power-added efficiency of >30%, and >26dB small signal gain.

Available in a 10-lead 15mm x 15mm bolt-down package, TGA2578 features a pure Cu base for superior thermal management. The RF ports of the TGA2578 include integrated DC blocking capacitors and are fully matched to 50Ω. Lead free and RoHS compliant, the TGA2578 Power Amplifier is ideal for electronic warfare, radar, EMC amplifier, communications, and test and measurement applications.

Features

  • 2GHz to 6GHz frequency range
  • Pout: 45dBm at PIN = 23dBm
  • PAE: >30%CW
  • >26dB signal gain
  • IM3: -30dBc @ 30dBm Pout/Tone
  • Bias: VD = 28V, IDQ = 400mA, VG = -2.8V Typical
  • Impedance: 50Ω
  • Input return loss: More than 12dB
  • Output return loss: More than 5dB
  • 15.2mm x 15.2mm x 3.5mm bolt-down SMT package
  • Package base is pure Cu offering superior thermal management

Applications

  • Electronic Warfare
  • Radar
  • Communications
  • Test Instrumentation
  • EMC Amplifier

Related Products

Qorvo QPA3359 Push-Pull Amplifier

GaAs pHEMT/MESFET RF amplifier featuring 28dB of gain at 1218MHz, ideal for DOCSIS 3.1 applications.

Learn More關於Qorvo QPA3359 Push-Pull Amplifier View Products與Qorvo QPA3359 Push-Pull Amplifier相關

Block Diagram

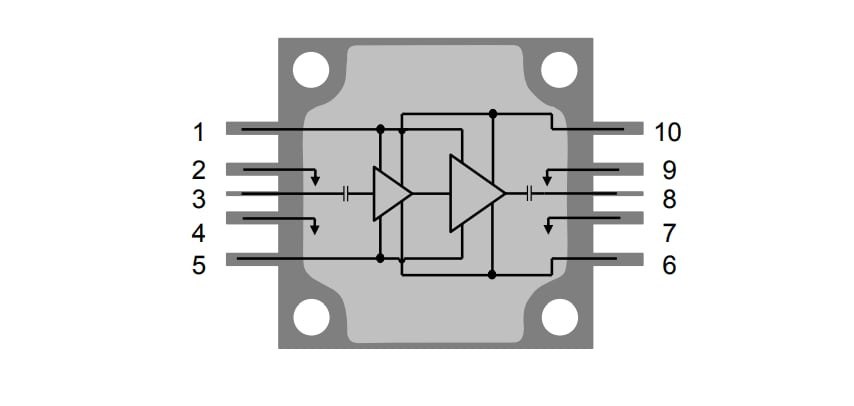

Block Diagram - Qorvo TGA2578 Wideband Power Amplifier
