Qorvo QPL1815 Differential CATV Amplifier
Qorvo QPL1815 Differential CATV Amplifier is a GaAs (Gallium Arsenide) pHEMT (Pseudomorphic High-Electron-Mobility Transistor) MMIC amplifier optimized for low noise and high linearity. The QPL1815 offers a 50MHz to 1800MHz frequency range, ideal for DOCSIS 4.0 applications. A Darlington configuration is utilized for broadband performance with an on-chip active bias circuit for consistent bias current and repeatable performance. The QPL1815 contains two amplifiers used in a push-pull configuration for excellent second and third-order linearity performance.
The Qorvo QPL1815 Differential CATV Amplifier is offered in an 8-pin Small Outline Integrated Circuit (SOIC) package.
Features
- 50MHz to 1800MHz frequency range
- 7V single power supply
- 215mA typical current
- 11dB gain (typical)
- 3.5dB noise figure (typical)
- MER 42dBm at a Total Composite Power (TCP) of +62dBmV
- 4.9mm x 3.9mm SOIC-8 package
- RoHS compliant
Applications
- DOCSIS 4.0 broadband CATV amps and nodes
- DOCSIS 4.0 line extenders and booster amps
- DOSCIS 4.0 extended-spectrum applications
Development Tools
Qorvo QPL1815EVB Evaluation Board
Demonstration and development platform for the QPL1815 Differential CATV Amplifier.
Related Products
Qorvo QPL181x CATV Amplifiers
GaAs pHEMT RF amplifiers with a 50MHz to 1800MHz frequency range, ideal for DOCSIS 4.0 applications.

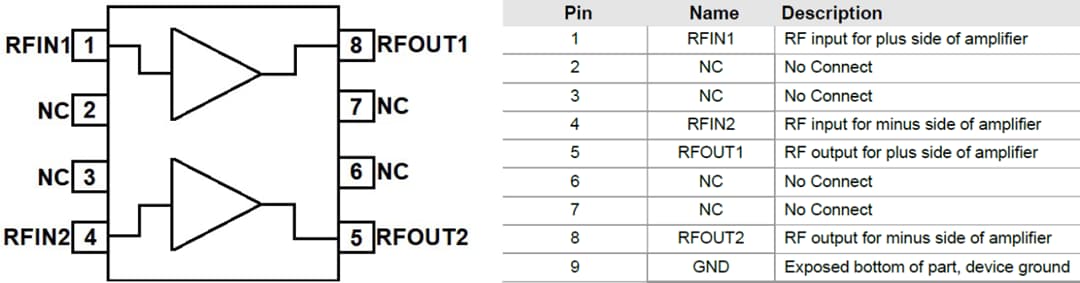

Pin Designations
