PANJIT PBHV8110DA/PBHV9110DA Low Vce(sat) Transistors
PANJIT PBHV8110DA/PBHV9110DA Low Vce(sat) Transistors are AEC-Q101 qualified with a high collector current capability. The devices provide excellent DC gain characteristics in a SOT-23 package.
Features
- High collector current capability
- Excellent DC current gain characteristics
- AEC-Q101 qualified
- Lead-free in compliance with EU RoHS 2.0
- Green molding compound as per IEC 61249 Standard
- SOT-23 Package
- Solderable per MIL-STD-750, method 2026 terminals
- PBHV8110DA
- Silicon NPN epitaxial type
- Low Vce(sat) 0.35V(max)@Ic/Ib= 500mA / 50mA
- PBHV9110DA
- Silicon PNP epitaxial type
- Low Vce(sat) -0.35V(max)@Ic/Ib= -500mA / -50mA
Additional Resources

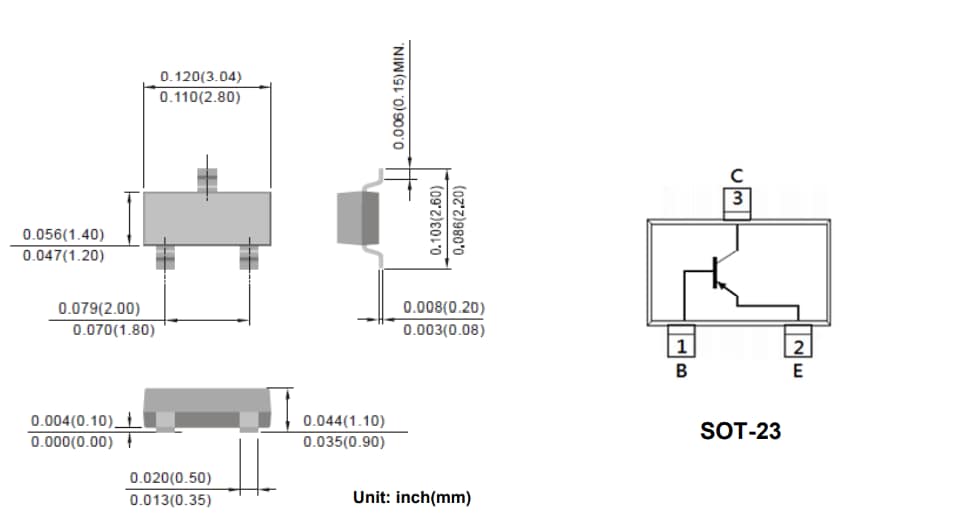

Dimensions
