onsemi NCP3064 Buck Boost Inverting Switching Regulators

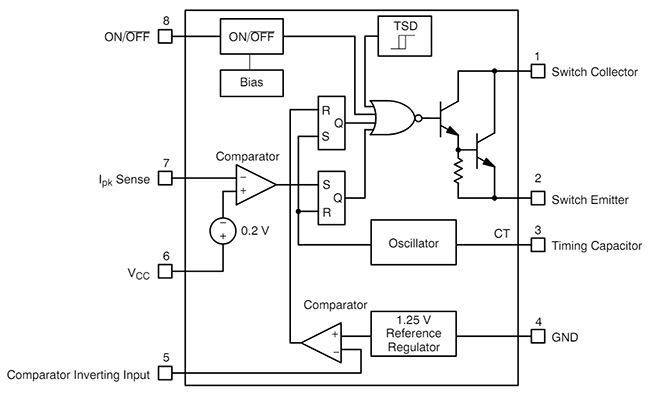

onsemi NCP3064 Buck Boost Inverting Switching Regulators consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver, and high current output switch. The onsemi NCP3064 series is designed to be incorporated in step-down, step-up, and voltage-inverting applications with a minimum number of external components. The ON/OFF feature puts the device into a low power (<100μA) standby state. NCP3064 regulators are a higher frequency upgrade to the popular MC33063A and MC34063A monolithic DC-DC hysteretic converters.

Features

3.0V to 40V input voltage range
Logic-level shutdown capability
Low power standby mode, 100A typical
Up to 1.5A output switch current
Adjustable output voltage range
150kHz frequency operation
Precision 1.5% reference
Internal thermal shutdown protection
SOIC-8, PDIP-8, or DFN8 package options

Cycle-by-cycle current limiting
Operating temperature ranges
- 0°C to +70°C for NCP3064
- -40°C to +125°C for NCP3064B
NCV prefix for automotive and other applications requiring site and control changes
Moisture Sensitivity Level (MSL) 1
Lead-free and RoHS-compliant
