Omron Electronics D2FD Dust Proof Basic Switch

Omron Electronics D2FD Dust Proof Basic Switch is an ultra subminiature series that meets IEC IP6X for dust-proof environments with the use of rubber sealant. The series is available in three actuator models: pin plunger, hinge lever, and simulated roller lever. All models come with solder or PCB terminals.

Features

Meets IEC IP6X for dust-proof environments
Switch rating of 2A at 125VAC possible with a single-leaf movable spring
Solder and PCB terminals

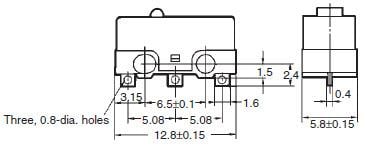

Terminal Dimensions in mm

View Results ( 12 ) Page

零件編號	說明	额定电流	操作力	安裝風格
D2FD-01L0-1H	微動/押扣開關 Solder Pin Plunger 0.1A Gold Alloy SPDT	100 mA	2 N	Chassis Mount
D2FD-01L1-1T	微動/押扣開關 PCB Hinge Lever 0.1A Gold Alloy SPDT	100 mA	0.65 N	PCB Mount
D2FD-2L1-1H	微動/押扣開關 Solder Hinge Lever 2A Silver Alloy SPDT	2 A	0.65 N	Chassis Mount
D2FD-01L1-1H	微動/押扣開關 Solder Hinge Lever 0.1A Gold Alloy SPDT	100 mA	0.5 N	Chassis Mount
D2FD-2L0-1H	微動/押扣開關 Solder Pin Plunger 2A Silver Alloy SPDT	2 A	2 N	Chassis Mount
D2FD-2L30-1H	微動/押扣開關 Solder Sim Roll Lev 2A Silver Alloy SPDT	2 A	0.65 N	Chassis Mount
D2FD-2L1-1T	微動/押扣開關 PCB Hinge Lever 2A Silver Alloy SPDT	2 A	0.65 N	PCB Mount
D2FD-01L0-1T	微動/押扣開關 PCB Pin Plunger 0.1A Gold Alloy SPDT	100 mA	0.5 N	PCB Mount
D2FD-01L30-1H	微動/押扣開關 Solder Sim Roll Lev 0.1A Gold Alloy SPDT	100 mA	0.5 N	Chassis Mount
D2FD-01L30-1T	微動/押扣開關 PCB Sim Roll Lev 0.1A Gold Alloy SPDT	100 mA	0.65 N	PCB Mount
