Nexperia PMEG040Vx Schottky Barrier Rectifiers

Nexperia PMEG040Vx Schottky Barrier Rectifiers offer a very low forward voltage and high power capability based on clip-bond technology. The PMEG040Vx-Q are qualified according to AEC-Q101 and suggested for use in automotive applications. The PMEG040Vx are ideal for high-efficiency DC-to-DC conversion, low voltage rectification, and freewheeling applications. The PMEG040Vx Schottky Barrier Rectifiers are housed in a CFP15B (SOT1289B) power and flat lead Surface-Mounted Device (SMD) plastic package.

Features

  • Very low forward voltage
  • High power capability due to clip-bond technology
  • Small and thin SMD plastic package
  • Qualified according to AEC-Q101 and recommended for use in automotive applications (PMEG040V-Q)

Applications

  • High-efficiency DC-to-DC conversion
  • Low voltage rectification
  • Switch mode power supply
  • Freewheeling application
  • Reverse polarity protection
  • OR-ing

Associated Products

Nexperia 採用CFP封裝的溝槽式肖特基整流器

具備低Qrr與VF/IR平衡的肖特基整流器，用於高速開關應用。

Learn More關於Nexperia 採用CFP封裝的溝槽式肖特基整流器 View Products與Nexperia 採用CFP封裝的溝槽式肖特基整流器相關

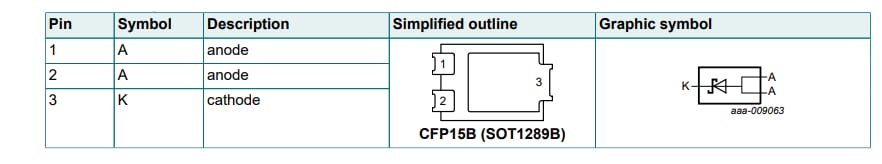

Pinning Diagram

Application Circuit Diagram - Nexperia PMEG040Vx Schottky Barrier Rectifiers
View Results ( 4 ) Page
零件編號 規格書 If - 順向電流 Vf - 順向電壓
PMEG040V050EPEZ PMEG040V050EPEZ 規格書 7 A 520 mV
PMEG040V030EPE-QZ PMEG040V030EPE-QZ 規格書 4.2 A 490 mV
PMEG040V050EPE-QZ PMEG040V050EPE-QZ 規格書 7 A 520 mV
PMEG040V030EPEZ PMEG040V030EPEZ 規格書 4.2 A 490 mV
發佈日期: 2022-08-22 | 更新日期: 2022-08-24
