Monolithic Power Systems (MPS) MPM3808 Synchronous Step-Down Power Modules

Monolithic Power Systems (MPS) MPM3808 Synchronous Step-Down Power Modules are integrated and easy-to-use modules with a built-in inductor and power MOSFETs. These power modules can achieve up to 3A of continuous output current (IOUT) with a good load and line regulation. The MPM3808 power modules employ input voltage (VIN) feed-forward and Costant-On-Time (COT) control to stabilize the Switching Frequency (fSW) across the entire VIN range. These power modules employ sleep mode for high efficiency under light-load conditions.

The MPM3808 power modules feature 21μA sleep mode IQ, 1% Feedback (FB) accuracy, 100% duty cycle, Power Good (PG), output discharge, external Soft Start (SS) control, and 65mΩ and 35mΩ integrated internal power MOSFETs. These modules are AEC-Q100 Grade 1 qualified and come in QFN-15 (3mm x 4mm x 1.6mm) packages. Typical applications include camera modules, automotive infotainment, automotive V2X, high-performance Digital Signal Processors (DSPs), Advanced Driver Assistance System (ADAS) sensors, and mobile devices.

Features

  • 21μA sleep mode IQ
  • AAM mode for increased efficiency under light-load conditions
  • Designed for automotive applications:
    • Wide 2.5V to 5.5.V operating VIN range
    • Up to 3A IOUT
    • 1% Feedback (FB) accuracy
    • -40°C to 150°C operating TJ range
    • Available in AEC-Q100 Grade 1
  • High-performance for improved thermals:
    • 65mΩ and 35mΩ integrated internal
    • Power MOSFETs
  • Optimized for EMC and EMI:
    • 2.4MHz fSW
    • MeshConnect™ flip-chip package
  • Optimized for board size and BOM:
    • Integrated internal power MOSFETs
    • Integrated compensation network
    • Available in a QFN-15 (3mm x 4mm x 1.6mm) package
  • Enable (EN) for power sequencing
  • Power Good (PG)
  • 100% duty cycle
  • External Soft Start (SS) control
  • Output discharge
  • Available in a wettable flank package

Applications

  • Camera modules
  • ADAS sensors
  • Automotive infotainment
  • Automotive V2X
  • High-performance Digital Signal Processors
  • Portable and mobile devices

Functional Block Diagrams

Block Diagram - Monolithic Power Systems (MPS) MPM3808 Synchronous Step-Down Power Modules

Application Circuit Diagram

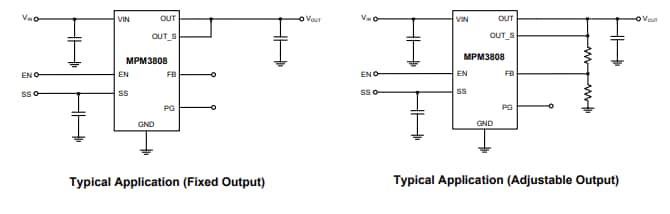

Application Circuit Diagram - Monolithic Power Systems (MPS) MPM3808 Synchronous Step-Down Power Modules
