Molex Mini-Fit TPA2電源連接器和電纜組件

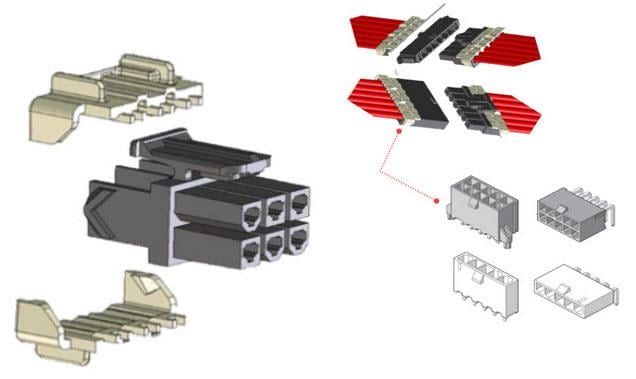

Molex Mini-Fit® TPA2電源連接器確保妥善對接，並可防止意外終端擰出，同時提供9.0A額定電流。TPA 2連接器兼容標準頭冠。標準Mini-Fit TPA2線纜組件提供提供開箱即用型解決方案，具有多種線纜長度和一個帶9.0A最高額定電流的4.20mm引腳連接器，以便進行原型設計和全球生產。這些連接器和電纜組件的典型應用包括消費/家用電子產品、資料/通訊、子車和工業自動化應用。
規格
- 電氣
- 600V AC/DC 電壓（最大值）
- 9.0A電流（最大）電源連接器
- 13.0A電流（最大）線纜組件
- 初始觸點電阻起按10mΩ變化
- 2200V介電層耐電壓強度
- 1000MΩ絕緣電阻
- 機械
- 15N (3.4lbf)連接插入力度
- 30N (6.74lbf)與外罩接觸保持力
- 14.7N (93.3lbf)對接力
- 1.0N (0.22lbf)拔出力
- 60N (13.5lbf) (V-0)拇指閂鎖抗屈服度（最小）
應用
- 消費電子產品/家用電器
- 數據/通訊
- 辦公設備
- 工業自動化
- 設備
- 網路
- 機動
- 線束製造商
非密封式應用
內部設備
- 線束製造商
TPA2連接器
工具
- Extraction Tools
- T2 Terminator Die
- Hand Crimp Tool, 20AWG
- Hand Crimp Tool, 18AWG
- Hand Crimp Tool for Mini-Fit MAX Receptacle Crimp Terminals, 16 AWG
- Locator for Mini-Fit MAX Terminals, 16 AWG
- Hand Crimp Tool for Mini-Fit TPA2 Crimp Terminals, 16AWG
- Hand Crimp Tool for MilliGrid and MicroBlade Crimp Terminals, 30AWG to 24AWG
- Hand Crimp Tool for MilliGrid Male Crimp Terminals, 30AWG to 24AWG
- Hand Crimp Tool for MilliGrid Crimp Terminals, 28AWG to 22AWG
- Locator for Mini-Fit TPA Terminals, 16 AWG
- FineAdjust Applicator for Mini-Fit TPA2 Crimp Terminals, 16AWG
- FineAdjust Applicator for Mini-Fit TPA2 Crimp Terminals, 20AWG to 18AWG
- FineAdjust Applicator for Wire-to-Board Crimp Terminals, 30AWG to 24AWG
- FineAdjust Applicator for Wire-to-Board Crimp Terminals, 28AWG to 22AWG
- FA2 Pneumatic Feed Crimp Applicator, 24AWG
- FA2 Mechanical Feed Crimp Applicator, 24AWG
- IDT Ribbon Cable Adapter Kit for 2.00mm
Related Products
Molex Mini-Fit Tooling
Comprehensive range of ruggedized tools designed for use with Mini-Fit terminals.
Molex Mini-Fit TPA2 Glow Wire Connectors
Wire housings that conform to IEC Glow Wire Ignition Temperature and Flammability Index standards.
Molex Mini-Fit Jr. Connectors
Ideal for higher current / higher density applications which require design flexibility.
Molex Discrete Wire & Cable Assemblies
Off-the-shelf solutions with a broad range of connectors in a variety of cable lengths.
