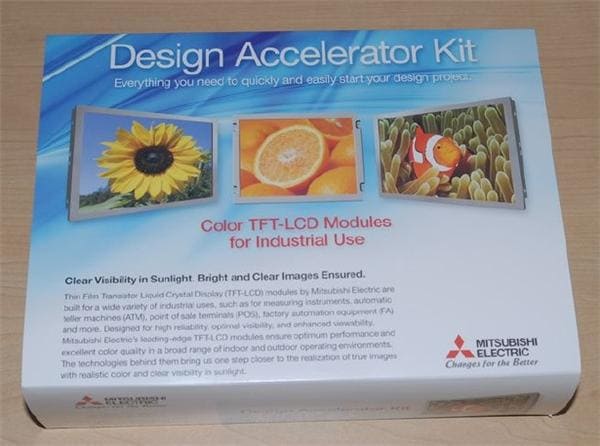

TFT LCD Design Accelerator Kits

Mitsubishi offers TFT LCD Design Accelerator Kits to cover the most popular resolutions and interfaces, including XGA, SVGA, VGA, WXGA, WVGA in either LVDS or CMOS interface. The kits include everything you need to quickly build and demo your TFT LCD design. The Mitsubishi TFT LCD Design Accelerator Kits include a video controller, signal converter, LED backlight drivers, AC power adapter, cables, and more.

Kit Contents:

  • Video controller - USB in, DVI out
  • Signal converter - DVI in, LVDS/CMOS out
  • LED backlight driver, 2 strings
  • AC Power Adapter
  • Cabling, adapters
  • Demo LCD display stand
  • User manual
Kit Part Number
Interface
Resolution
Pixels
 Applicable Display Modules
DAK-TFT-XGA-LVDS LVDS XGA 1024x768 AA121XK01, AA150XT01
DAK-TFT-SVG-LVDS LVDS SVGA 800x600 AA084SB01, AA084SB01--T2, AA104SH02
DAK-TFT-VGA-CMOS CMOS VGA 640x480 AA084VG01, AA104VH02
DAK-TFT-WXG-LVDS LVDS WXGA 1280x800 AA141TC01, AA175TD01
DAK-TFT-WVG-LVDS LVDS WVGA 800x480 AA090ME01--T1, AA090MF01--T1
