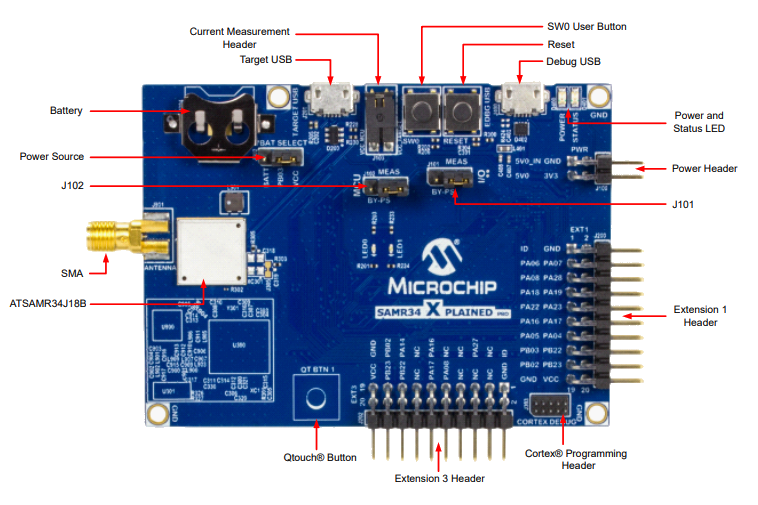

Microchip Technology SAM R34 Xplained Pro Evaluation Kit

Microchip SAM R34 Xplained Pro Evaluation Kit is a hardware platform that evaluates the SAM R34 family of LoRa^® devices. This Microchip kit is supported by the Atmel Studio, an integrated development platform, and provides easy access to the features of the ATSAMR34 device. The SAM R34 XPRO evaluation kit offers additional peripherals to extend the board's features and ease the development of custom designs. This evaluation board is FCC, ISED, and RED-certified, with an excellent reference design for developing SAMR34-based LoRa^® end-node applications.

Features

Ultra-low power ATSAMR34 SiP with Cortex^® M0+ CPU and LoRa transceiver
Supports 862MHz to 1020MHz frequency operation
On-Board debugger EDBG eliminates the need for an external debugger
Support for Atmel Studio 7 ICE
Two extension headers for the signal breakout and expansion boards
On-Board power management system with current monitoring and USB power conditioning
XPRO current measurement system data visualizer support
USB power inlet with ESD protection and buck converter
Direct USB connection to ATSAMR34 with ESD protection
CR1220 backup battery holder
On-Board TCXO
