Microchip Technology ADM01014 Evaluation Board
Microchip Technology ADM01014 Evaluation Board demonstrates the capabilities of the MCP1663 device, used in the SEPIC topology for applications that require a tiny form factor. The MCP1663 SEPIC converter has an output voltage set to 3.3V and is designed in a little DDPAK package. The ADM01014 Evaluation Board reduces the product design cycle time and requires external laboratory power supplies and load.
Features
- 1.85V (typical) Undervoltage Lockout (UVLO)
- 2.3V (UVLO Start) start-up voltage
- 1.85V to 5.5V input voltage range (VIN) after start-up
- 3.3V output voltage
- 300mA @ 3.3V Output, 2.8V Input output current
- PWM Operation
- 500kHz switching frequency
- 1.8A peak input current limit
- Internal compensation
- Soft start
- Overtemperature protection (if the die temperature exceeds 150°C, with 15°C hysteresis)
- 13mm x 9.5mm (DDPAK) package

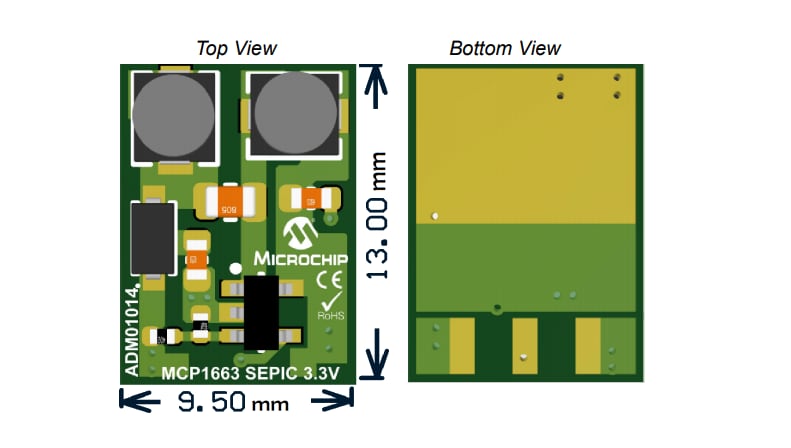

Layout
