Mallory Sonalert MSR205 Piezoelectric Indicators
Mallory Sonalert MSR Series is a Piezoelectric Indicator, with DC voltage, housed in a ø23mm x 11mm blue round housing with PC Pins. Features include loud continuous or pulse sound levels ranging from 75dBa to 96dBa and a 3.4kHz to 3.9kHz frequency range with gullwing lead or solder pin terminations. Options include board mount or flush mount and sealed (wash label included) versions are also available.
Specifications
- 75dBa to 96dBa sound pressure level range
- Tone
- Continuous
- Pulse
- 3.4kHz to 3.9kHz frequency range
- 3V to 20V voltage rating range
- 10mA to 16mA current rating range
- Blue UL94V-0, Valox housing material
- Termination
- Gullwing lead
- Solder pin
- Mounting
- Board
- Flush
- ø23mm x 11mm in dimension
- RoHS compliant

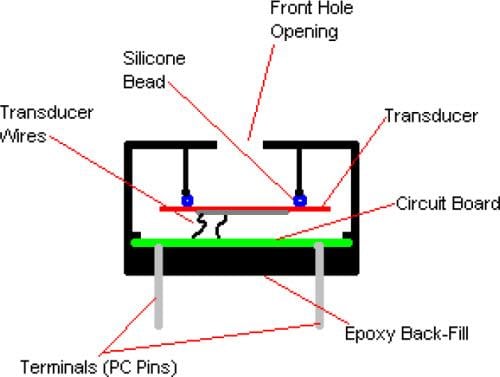

Basic Construction
View Results ( 15 ) Page
| 零件編號 | 規格書 | 额定电流 | 聲壓級 | 頻率 | 額定電壓 | 音調 | 安裝風格 |
|---|---|---|---|---|---|---|---|
| MSR205NR |  |
10 mA | 85 dBA | 3.9 kHz | 3 VDC | Continuous | Through Hole |
| MSR516NPSR | |
12 mA | 86 dBA | 3.9 kHz | 16 VDC | Pulse | Through Hole |
| MSR205NJSR | |
10 mA | 85 dBA | 3.9 kHz | 3 VDC | Pulse | Through Hole |
| MSR516NR | |
14 mA | 96 dBA | 3.9 kHz | 16 VDC | Continuous | Through Hole |
| MSR320R | |
16 mA | 75 dBA | 3.8 kHz | 20 VDC | Continuous | Through Hole |
| MSR320SR | |
16 mA | 86 dBA | 3.8 kHz | 20 VDC | Continuous | Through Hole |
| MSR414NR | |
12 mA | 86 dBA | 3.9 kHz | 10 VDC | Continuous | Through Hole |
| MSR516NJR | |
12 mA | 96 dBA | 3.9 kHz | 16 VDC | Pulse | Through Hole |
| MSR516NSR | |
14 mA | 96 dBA | 3.9 kHz | 16 VDC | Continuous | Through Hole |
| MSR205NJR | |
10 mA | 85 dBA | 3.9 kHz | 3 VDC | Pulse | Through Hole |
