M5Stack A105 ESP32 Downloader Kit

m5Stack A105 ESP32 Downloader Kit is a USB-TTL adapter board for the ESP32/ESP8266, an RF System-on-Chip (SoC). This item contains either a CP2104 or CH9102 chip. It supports one-touch download without chip and pin-down resetting manual. The plug-in board and row of pins parts from the set can be convenient for ESP32/ESP8266 series development board or M5Stack series products for program burning or serial debugging.


  • Type-C interface
  • Matching the IO sequence of various M5Stack products, direct plug and burn, no wiring required (UNIT CAM/STAMP series, etc.)
  • ESP32/ESP8266 program downloader
  • Receive/send buffer
  • Compliant with USB2.0 specification


  • USB-TTL IC - CP2104/CH9102F
  • USB Interface Type - TypeC
  • Baud Rate (300bps to 2Mbps)
  • Supported data formats
    • Data bits: 5, 6, 7, and 8
    • Stop bits: 1, 1.5, and 2
    • Parity (odd, even, mark, space, no parity)
  • Buffer
    • 576-byte receive buffer
    • 576-byte send buffer
  • Net weight (10g)
  • Gross Weight (11g)
  • 33mm x 16mm x 3mm product dimensions
  • 90mm x 60mm (static bag) package size

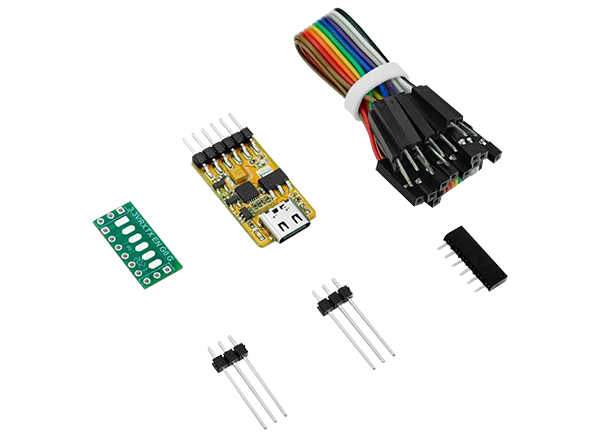

Kit Contents

  • 1x ESP32 CAM downloader
  • 1x ESP32 CAM pinout board
  • 1x 2.54-6P female header
  • 2x 2.54-3P row of pins
