Lantronix Open-Q™ AL Development Kits

Lantronix Open-Q™ AL Development Kits are created to rapidly prototype products that require advanced imaging and computer vision performance in low-cost and low-power embedded conditions. The Open-Q AL kits include separate hardware modules connected by high- and low-speed connectors. Additionally, the kit complies with the 96Boards open hardware specification standard, allowing users to add additional third-party mezzanine expansion boards.

The Lantronix Open-Q AL Development Kits are compatible with the Open-Q 4290 and 2290 SOMs, powered by Qualcomm Dragonwing™ technology. Designers can use the same development kit to evaluate or prototype with multiple Lantronix SOM families.

Features

The development kit provides hardware interfaces to evaluate the camera, video, display on LCD and HDMI, and connectivity capabilities

Supports many robotic features
Users can expand the kit with compatible boards from 96Boards

Applications

Intelligent surveillance camera, dash camera, body camera
Fleet management with video analytics
Warehouse and logistics robots

Rugged handheld computer
Interactive display boards
Drone

Specifications

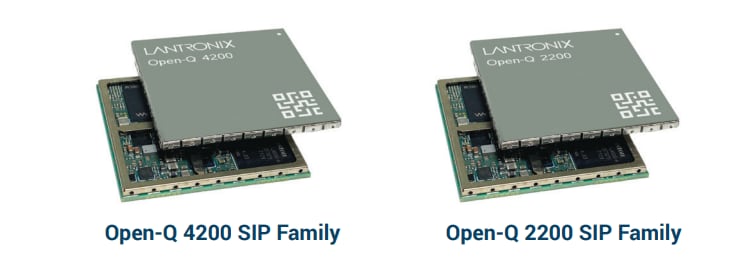

Compatible SIPs
- Open-Q 4290CS
- Open-Q 2290CS
Display interfaces
- TFT LCD, 4.99 inch, 720 x RGB x 1280 dots
- HDMI Type A
Camera interfaces
- 2x 4-lane MIPI CSI
- 1x 1-lane MIPI CSI
- 1x 4-lane or 2-lane MIPI CSI
- 2x GMSL2 camera inputs
Wi-Fi^® and BLUETOOTH^® depend on the specific SIP purchased and installed

Audio interfaces
- 4x digital PMD mics
- Speaker connectors
I/O interfaces
- 3x low-speed connectors, 96Boards
- 3x high-speed connectors, 96Boards
- USB Type-C^®, 2 USB Type-A, Debug UART, RJ45 Ethernet, microSD card, JTAG
- Antenna on interposer
- 3x Infrared interfaces
Ethernet through USB 3.0 (1GB)
12V power input
96Boards compliant form factor

Kit Contents

Pre-assembled Open-Q AL2 main board
Open-Q AL vision kit with nav mezzanine board, 13MP IMX258 camera, and 5MP OS05A10 camera
5.45" TFT LCD, 720 x 1440 dots, touch screen
