JST Connectors FOX FPC/FFC Connectors

JST Automotive FOX FPC/FFC Connectors feature a reliable locking structure provided on the FFC side to prevent incomplete mating and improve retention force. The FOX connectors also offer high resistance to scooping, temporary board retention, and two types of connections (top and side-entry). These connectors achieve high operability with a 1.5A_AC/DC current rating, a 12V_AC/DC voltage rating, and a temperature range from -40°C to +90°C. The FOX FPC/FFC Connectors from JST Automotive are ideal for use in automobile assembly processes.

Features

Reliable locking structure
High operability
High resistance to scooping insertion/withdrawal
RoHS compliant

Temporary board retention by clinching the contact solder tail, prevents lifting of the connector
Top or side-entry connection options

Specifications

1.5A_AC/DC current rating
12V_AC/DC voltage rating
-40°C to +90°C temperature range
Maximum contact resistance
- 10mΩ initial value
- 30mΩ after environmental testing
100MΩ minimum insulation resistance
500V_AC withstanding voltage for 1 minute

Applicable FCC
- Tin-plated annealed copper foil lead material
- 1.25mm lead pitch
- 0.8mm lead width
- 0.3mm±0.05mm mating part thickness

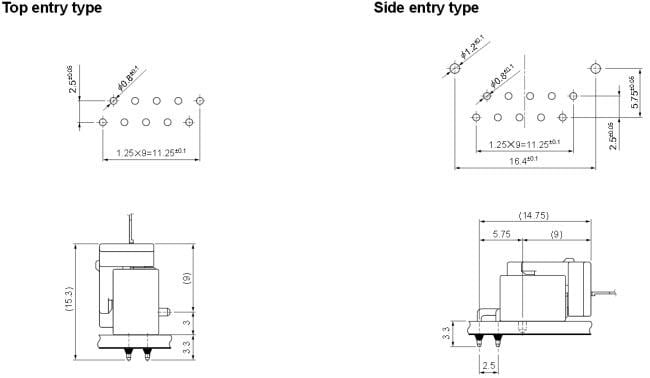

Applicable PC board
- 1.6mm thickness
- 0.8mm±0.1mm hole size (through-hole)
