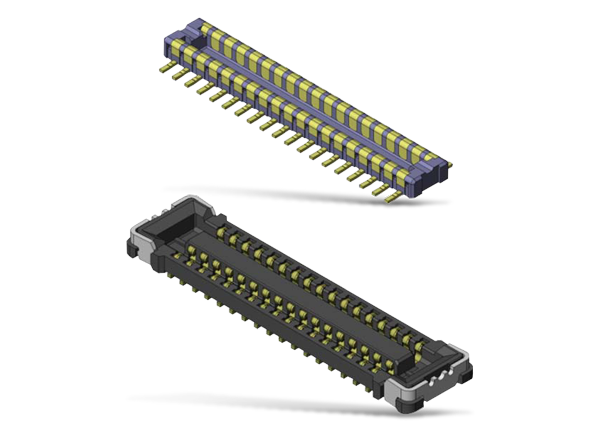

JAE Electronics WP21 0.35mm Board-to-Board Connectors are space-saving, low-profile stacking type board-to-board (FPC) connectors with 0.35mm pitch, 2 rows, and 0.6mm stacking height. The series saves 10% mounting space compared to the WP9 series and provides enhanced design flexibility. JAE Electronics WP21 0.35mm Board-to-Board Connectors are ideal for high-density mounting in smartphones and other slim or compact communication devices.
0.35mm pitch, 2 rows, 0.6mm stacking height
Two-point contact design resists twisting stress
Improved workability with a clear click feeling
Contact structure ensures high wear resistance and high contact reliability
Lead free (nickel barrier on contact prevents solder wicking)
70mΩ maximum (initial) contact resistance
0.3A per terminal AC, DC rated current
50V AC, DC rated voltage
-40°C to +85°C operating temperature range
JAE Electronics Board-to-Board Connectors
Low-profile, stacking-type connectors that offer high wear resistance and high contact reliability.
