Infineon Technologies BGC100GN6 Antenna Centric Devices

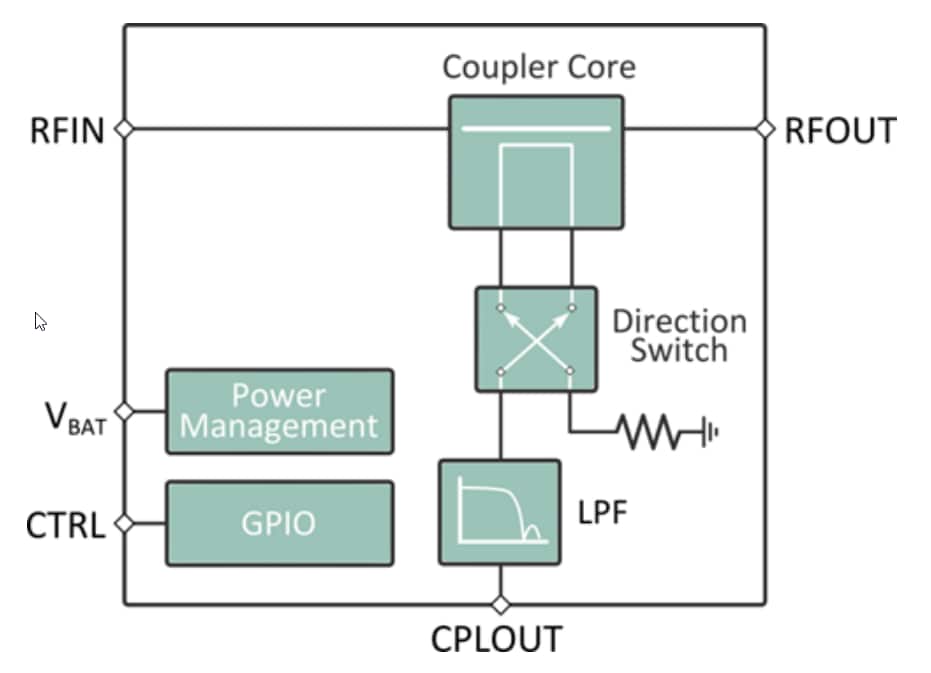

Infineon Technologies BGC100GN6 Antenna Centric Devices is an integrated bi-directional coupler IC designed for 2G/3G/4G RF front-end applications. The devices feature a bidirectional coupler operating in one or multiple bands within a 0.6-2.7GHz frequency range. The coupled output contains a low-pass filter for 5GHz ISM blockers suppression and offers low insertion loss and high directivity.

Control the coupler using a GPIO pin and the device uses high-volume RF-CMOS technology with no additional external power supply blocking or RF decoupling capacitors required. The device is housed in a small size of only 1.1x0.7mm² and a maximum height of 0.4mm.

Features

Fully integrated coupler in RF CMOS
Bi-directional coupler
Fitted for feedback receivers to accomplish closed loop power control and antenna tuning
Wide frequency range: 0.6 to 2.7GHz
Designed for low insertion loss and high directivity
Integrated low-pass filter for 5GHz WiFi jammers suppression
GPIO controlled
Small form factor 1.1x0.7mm

RoHS and WEEE compliant package
Qualified for industrial applications according to the relevant tests of JEDEC47/20/22
Compact directional coupler for cellular RF front-end applications
Optimized for power regulation and close loop antenna tunings
Addresses Wi-Fi and cellular co-existence challenge with integrated Wi-Fi filter in the coupled path
Compatible with standard SMT lines
