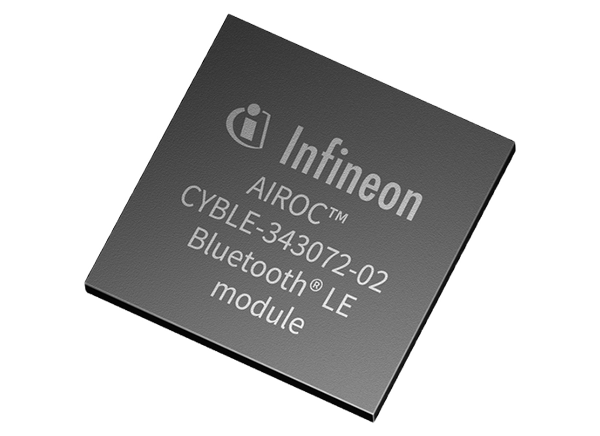

Infineon Technologies AIROC™ BLUETOOTH® & Bluetooth LE Modules

Infineon Technologies AIROC™ BLUETOOTH® and Bluetooth LE Modules assist users in developing Internet of Things (IoT) design quickly and efficiently. These modules greatly reduce development risk and accelerate time to market. Additionally, the modules are qualified by Bluetooth SIG and have received regulatory certification approval from organizations like FCC, ISED, MIC, and CE. This allows users to focus on creating unique IoT applications without worrying about the complexities of board bring-up, RF/spec testing, performance testing, and regulatory testing.

The AIROC Bluetooth and Bluetooth LE module modules offer various products that cater to various applications. Some modules are optimized for specific form factors, and others use custom external chip antennas. This provides users with a range of options to choose from based on application needs.

Infineon's Bluetooth and Bluetooth LE modules are fully integrated, featuring an onboard crystal oscillator, passive components, flash memory, and a base system on chip. These highly integrated modules are supported by the AIROC Bluetooth SDK in ModusToolbox™ software and tools, which includes code examples to assist in the rapid development of embedded Bluetooth LE applications.

Features

Module size 13.31mm x 21.89mm x 1.95mm
Bluetooth 5.0 qualified smart ready module
Certified to FCC, ISED, MIC, and CE regulations
Castellated solder pad connections for ease-of-use
512KB on-module serial flash memory
Up to 24 GPIOs
–30°C to +85°C oeprating temperature range

96MHz Arm® Cortex®-M4 with floating-point unit
Cortex-M4 32-bit processor
Maximum TX output power
- +12dBm for Bluetooth LE
RX receive sensitivity
- Bluetooth LE -94.5dBm
Bluetooth LE connection range of up to 250 meters at 12dBm

Applications

Home automation
Sensors (medical, security, and industrial)

Lighting
Internet of Things (IoT)

Videos

Block Diagram

Quality Certifications

CYBLE-416045-02
- FCC, ISED, MIC, and CE certifications
- KBA224346
CYBLE-022001-00
- FCC, ISED, MIC, CE, and KC certifications
- KBA97094
CYBLE-222005-00, CYBLE-224014-01
- FCC, ISED, MIC, CE, and KC certifications
- KBA210559
CYBLE-012011-00, CYBLE-212019-00, CYBLE-212020-01
- FCC, ISED, MIC, CE, KC, and SRRC certifications
- KBA210638
CYBLE-212006-01, CYBLE-202007-01
- FCC, ISED, MIC, CE, and KC certifications
- KBA216380
CYBLE-014008-00, CYBLE-214009-00, CYBLE-214015-01
- FCC, ISED, MIC, CE, and KC certifications
- KBA210574
CYBLE-224110-00, CYBLE-224116-01
- FCC, ISED, MIC, CE, and KC certifications
- KBA213260
CYBLE-013025-00, CYBLE-013030-00
- FCC, ISED, MIC, and CE certifications
- KBA219623

CYBT-343026-01
- FCC, ISED, MIC, CE, KC, NCC, and SRRC certifications
- KBA220396
CYBT-343052-01
- FCC, ISED, MIC, and CE certifications
- KBA228505
CYBT-333032-02, CYBT-333047-02
- FCC, ISED, MIC, and CE certifications
- KBA225653
CYBT-353027-02
- FCC, ISED, MIC, and CE certifications
- KBA223952
CYBT-423028-02, CYBT-423054-02, CYBT-423060-02
- FCC, ISED, MIC, and CE certifications
- KBA223751
CYBT-413034-02, CYBT-413055-02, CYBT-413061-02
- FCC, ISED, MIC, and CE certifications
- KBA224511
CYBT-483039-02, CYBT-483056-02, CYBT-483062-02
- FCC, ISED, MIC, and CE certifications
- KBA224516
