iBASE Technology ISR301 Series IoT Gateways
IBASE Technology ISR301 Series IoT Gateways offer a rugged and fanless design. The ISR301 Series IoT Gateways provide a ruggedized embedded system with NXP Arm® Cortex®-A53 i.MX 8M Quad 1.3GHz processor. The IBASE ISR301 Gateways support M.2 Key-E (2230) and Mini PCI-E with SIM socket for Wireless/4G/LTE connectivity.
The IBASE Technology ISR301 Series IoT Gateways come in a 172mm x 162mm x 36mm (6.78" x 6.38" x 1.42") package and have an operating temperature of -10°C to +60°C.
Features
- NXP Cortex-A53, i.MX 8M Quad 1.3GHz (Industrial Grade)
- 3GB LPDDR4, 16GB eMMC, and SD socket for expansion
- Embedded I/O for COM, GPIO, USB, HDMI, Ethernet
- Supports M.2 Key-E (2230) and mini PCI-E with SIM socket for wireless/4G/LTE connectivity
- Ruggedized and fanless design
Associated Products
NXP Semiconductors i.MX 8M應用處理器
設計用於滿足智能家居和智能流動應用的音訊和視訊要求。

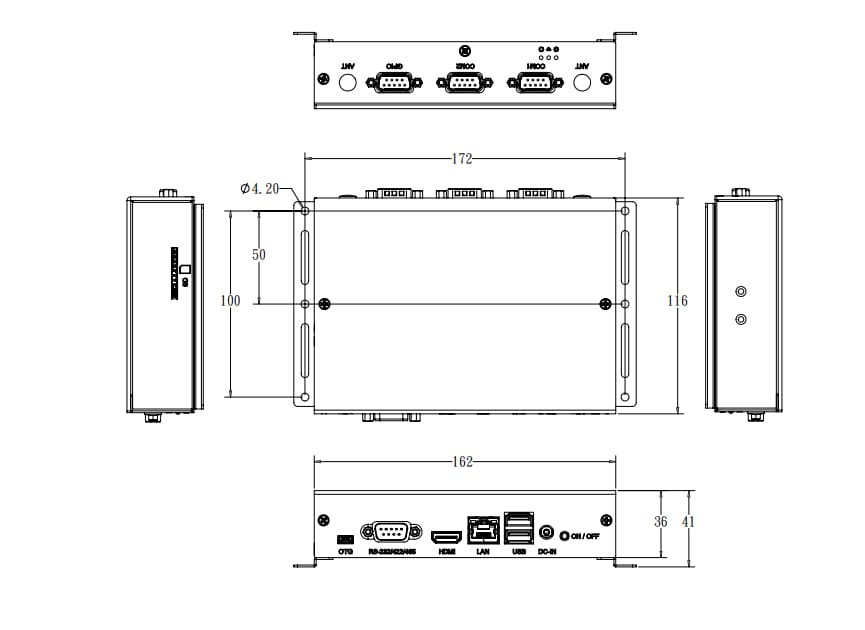

Dimensions in Millimeters
