Honeywell MPR MicroPressure感應器
Honeywell MPR MicroPressure感應器是5mm x 5mm矽壓阻式壓力感應器，可提供指定全刻度壓力範圍和溫度範圍的數碼輸出。Honeywell MPR採用板上特定應用IC (ASIC)，已針對特定溫度範圍內的感應器偏移、靈敏度、溫度效果和非線性進行校準和補償。MPR MicroPressure感應器符合更高容量消費和非消費醫療裝置、商業儀器應用及工業/暖通空調應用的要求。
特點
- 5mm x 5mm (0.20" x 0.20") package footprint
- Calibrated and compensated
- 60mbar to 2.5bar, 6kPa to 250kPa, 1psi to 30psi
- 24-bit digital I2C or SPI-compatible output
- Interface ready for Internet of Things (IoT)
- Ultra-low power consumption (as low as 0.01mW typical average power, 1Hz measurement frequency)
- Stainless steel pressure port
- Wide pressure ranges simplify use
- Small form factor
- Compatible with a variety of liquid media
- Absolute and gauge pressure types
- Cost-effective, higher volume solution with configurable options
- As low as ±1.25% FSS total error band after user auto-zero
- 0°C to +50°C compensated temperature range
- REACH and RoHS compliant
- Meets IPC/JEDEC J-STD-020D.1 Moisture Sensitivity Level 1
- Select sensors available on breakout board for easy evaluation and testing
應用
- Consumer medical
- Non-invasive blood pressure monitoring
- Negative-pressure wound therapy
- Mobile oxygen concentrators
- Airflow monitors
- Non-consumer medical
- Invasive blood pressure monitors
- Ambulatory blood pressure measurement
- Industrial
- Air braking systems
- Gas and water meters
- Consumer
- Coffee machines
- Humidifiers
影片
I2C Bus Configuration

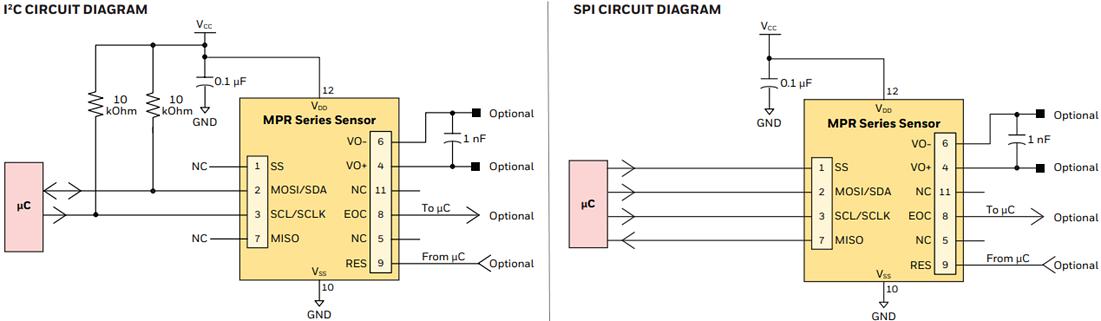

I2C & SPI Reference Circuits
Development Tools
Honeywell MPR MicroPressure Evaluation Boards
Compatible with a variety of liquid media and offers 24-bit digital I2C- or SPI-compatible output.
Honeywell SEK002 Sensor Evaluation Kit
Demonstrates and evaluates multiple series of Honeywell sensors.
Related Sensors
Honeywell Board Mount Pressure Sensors
Compensated/amplified, compensated/unamplified, and uncompensated/unamplified pressure sensors.
