NEUTRIK NA-4I4O-AES72 4-Channel Stagebox

NEUTRIK NA-4I4O-AES72 4-Channel Stagebox is designed to transmit microphone levels, analog line levels, AES3, DMX, and intercom via one single CAT cable. This stagebox features male and female XLRs in the same housing and can be used directly as a splitter for monitoring. The NA-4I4O-AES72 stagebox consists of etherCON that serves as feedthrough and allows further looping of the signals to other devices. This stagebox also features a ground lift at each input, preventing possible ground loops. The NA-4I4O-AES72 stagebox supports combined inputs and outputs for complete flexibility in the application. This stagebox offers a phase inversion switch at each input for inverting the signal.

Features

Robust and compact design for demanding environments
Combo XLR/jack inputs
Ground lifting switch at each input to prevent possible ground loops

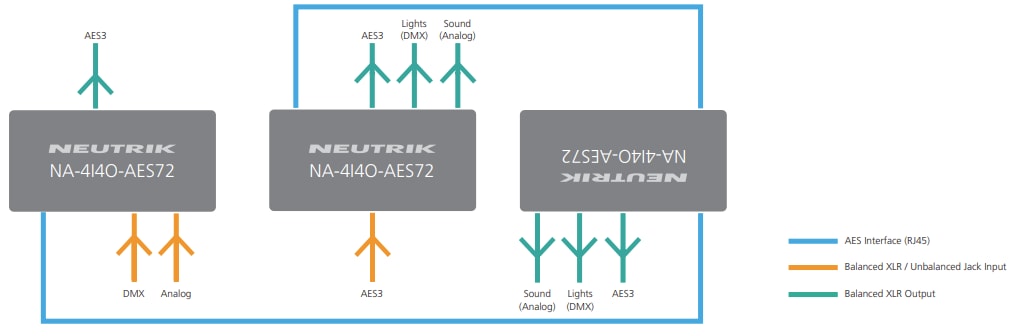

An additional etherCON serves as feedthrough and allows daisy chaining of the signals to other devices
Combined inputs and outputs for complete flexibility in the application

Assignment according to AES72 (Type 4E) to use standardized RJ45 connectors and quad twisted pair cables for analog audio connections
Phase inversion switch at each input offers the possibility to invert the signal
Completely dark appearance for optimal usage on stage

Specifications

Input channels:
- 4 x combo XLR/jack female
Output channels:
- 4 x XLR male
Interconnection channels:
2 x RJ45 / AES72 Type 4E
Cable requirement:
- Minimum shielded CAT5 cable
48V_DC maximum rated voltage
500mA maximum rated current

Signal compatibility:
- Mic level
- Line level analog
- AES3
- DMX
- Other COM signals
IP20 ingress protection class
-5°C to 60°C operating temperature range
