Diodes Incorporated BAS70 Schottky Barrier Diodes and Arrays

Diodes Incorporated BAS70 Schottky Diodes and Arrays are surface-mount devices with low turn-on voltage. These fast switching diodes are Green devices, Lead-free, and RoHS compliant. The BAS70 diodes are available in different packages.

Electrical Characteristics for BAS70/BAS70TW:

  • 70V DC blocking voltage (VR)
  • Instantaneous forward current (IF) is 1mA
  • Forward voltage (maximum) VF MAX at 25ºC is 0.41V
  • Reverse current (maximum) IR MAX at 25ºC is 0.1µA

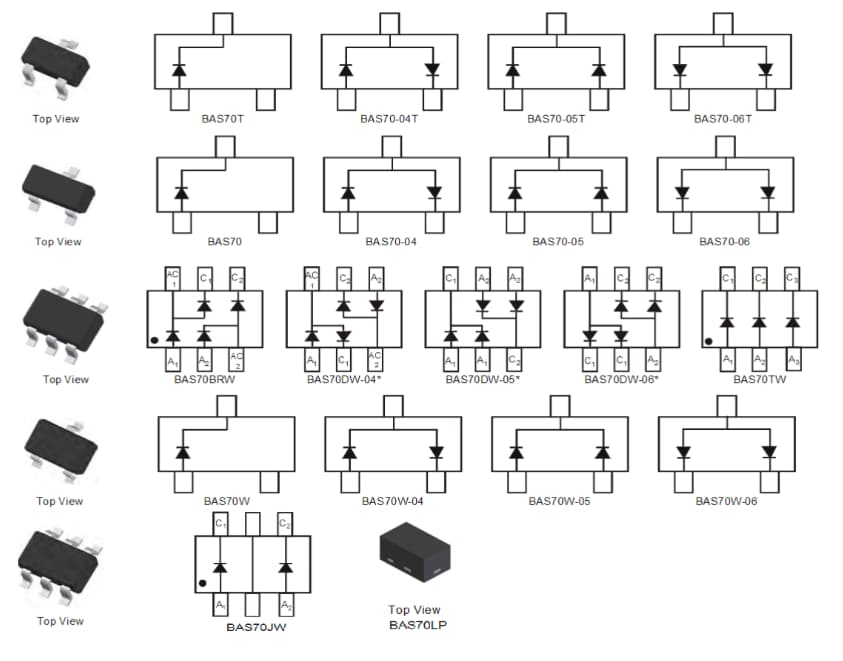

BAS70 Devices Schematic

Diodes Incorporated BAS70 Schottky Barrier Diodes and Arrays

Related Product

Diodes Incorporated Automotive Schottky Diodes & Rectifiers

AEC-Q101 qualified provides high reliability and meets PPAP level 3 standards.

Learn More關於Diodes Incorporated Automotive Schottky Diodes & Rectifiers View Products與Diodes Incorporated Automotive Schottky Diodes & Rectifiers相關
View Results ( 6 ) Page
零件編號 規格書 說明 Vf - 順向電壓 Ifsm - 順向浪湧電流
BAS70DW-05-7-F BAS70DW-05-7-F 規格書 肖特基二極體及整流器 70V 200mW 1 V 100 mA
BAS70TW-7-F BAS70TW-7-F 規格書 肖特基二極體及整流器 70V 200mW 1 V 100 mA
BAS70BRW-7-F BAS70BRW-7-F 規格書 肖特基二極體及整流器 200MW 70V BRIDGE 1 V 100 mA
BAS70DW-04-7-F BAS70DW-04-7-F 規格書 肖特基二極體及整流器 70V 200mW 1 V 100 mA
BAS70DW-05Q-7-F BAS70DW-05Q-7-F 規格書 肖特基二極體及整流器 70V 1.0mA 0.41Vf 0.10uA Schottky 410 mV 100 mA
BAS70DW-06-7-F BAS70DW-06-7-F 規格書 肖特基二極體及整流器 70V 200mW 1 V 100 mA
