Digilent B200 Ettus USRP SDR/Cognitive Radio
Digilent B200 Ettus USRP SDR/Cognitive Radio offers a fully integrated, single board, Universal Software Radio Peripheral platform with continuous frequency coverage from 70MHz to 6GHz. The B200 is designed for low-cost experimentation, with a fully integrated direct conversion transceiver delivering up to 56MHz of real-time bandwidth, an open and reprogrammable Spartan6 FPGA, and fast and convenient bus-powered SuperSpeed USB 3.0 connectivity. The device fully supports the UHD (USRP Hardware Driver) software, allowing rapid development with a GNU Radio, prototyping GSM base station with OpenBTS, and seamlessly transitioning code from the B200 to higher performance industry-ready USRP platforms. The enclosure accessory kit (sold separately) utilizes green PCB devices (revision six or later) assembly of a protective steel case.
The Digilent B200 Ettus USRP SDR/Cognitive Radio offers an integrated RF frontend, designed with the Analog Devices AD9364. The AD9364 is a single chip direct conversion transceiver and digital baseband processor, capable of streaming up to 56MHz of real-time RF bandwidth. The B200 facilitates one signal chain of the AD9364 to be bus-powered, reducing software and hardware design complexity. Onboard signal processing and control of the AD9364 is performed by a Spartan-6 XC6SLX75 FPGA connected to a host PC using SuperSpeed USB 3.0. The USRP B200 real-time system throughput is benchmarked at 61.44MS/s quadrature, permitting the full 56MHz of instantaneous RF bandwidth to the host PC for additional processing using the GNU Radio SDR design environment.
Features
- RF Specifications
- Xilinx Spartan-6 XC6SLX75 FPGA
- 1 TX and 1 RX, Half or full duplex channels
- 70MHz to 6GHz Frequency range
- Instantaneous bandwidth up to 56MHz
- .35/50dBc SSB/LO Suppression
- 3.5GHz deg RMS
- 6GHz deg RMS
- .20dBm IIP3 (at typical NF)
- >10dBm Power output
- <8dB Receive noise figure
- Conversion performance and clocks
- 61.44MS/s ADC Sample Rate (Max.)
- 12 bits ADC Resolution
- 78dBc ADC Wideband SFDR
- 61.44MS/s DAC Sample rate (Max.)
- 12bits DAC Resolution
- 61.44MS/s Host sample rate (16b)
- ±2.0ppm Frequency accuracy
- ±75ppb w/GPS Unlocked TCXO reference
- <1ppb w/GPS Locked TCXO reference
- USB bus powered
- Physical
- Grounded mounting holes
- USB 3.0 SuperSpeed interface
- Standard USB 3.0 connector
- 97mm x 155mm x 15mm Dimensions
- Weight of 350g
- Environment
- 0°C to 45°C Operating temp. range
- USRP Hardware driver 3.9.2 (or later)
- GNU Radio, C++ and Python APIs
- Synchronization
- 10MHz clock reference
- PPS time reference
- Product compliance
- 8471809000 HTC
- 3A992.a ECCN
Kit Contents
- USRP B200 board
- USRP Enclosure Kit is available as a bundle option and can also be purchased separately
- USB 3.0 cable
Additional Resources
Videos

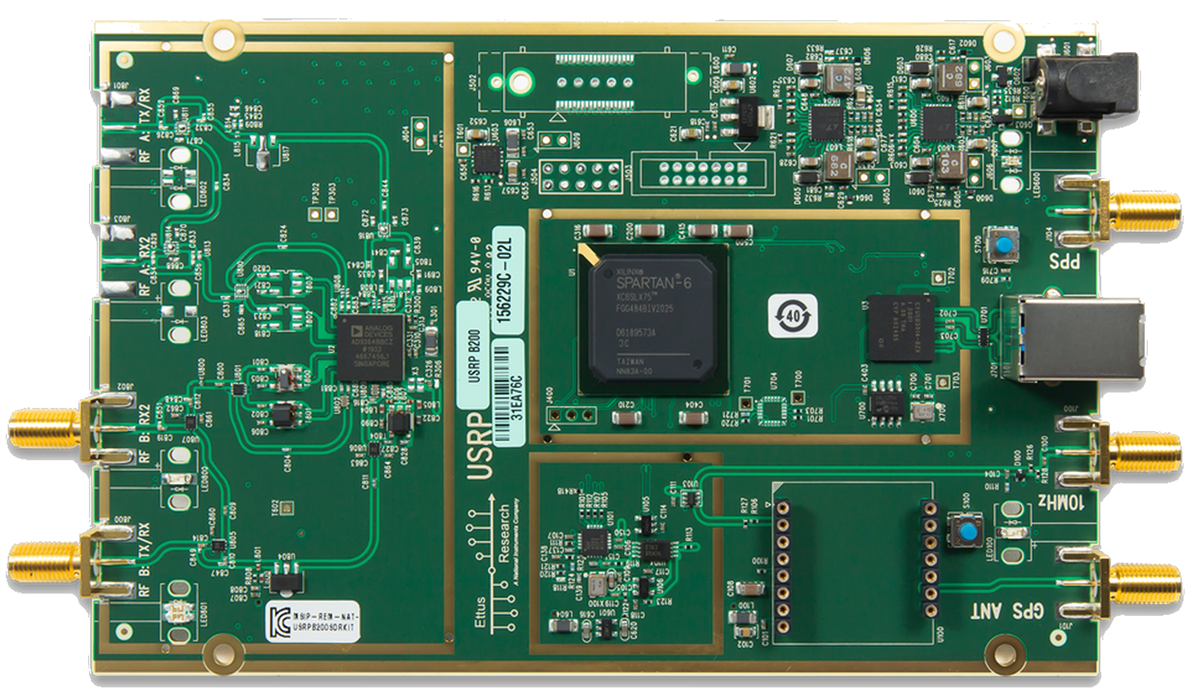

Front Overview

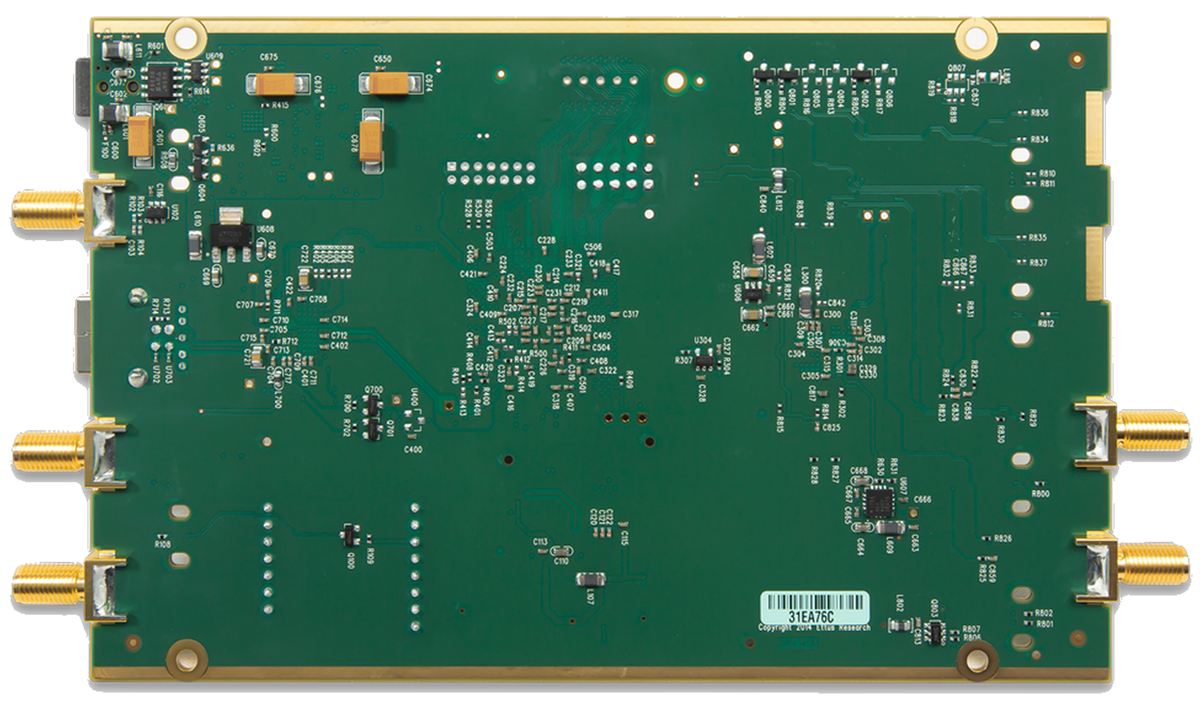

Back Overview
