Digilent Arty A7-100T Development Board

Digilent Arty A7-100T Development Board is a ready-to-use development platform designed around the Artix-7™ Field Programmable Gate Array (FPGA) from Xilinx®. This development board is designed specifically to be used as a MicroBlaze soft processing system. The Arty A7-100T development board provides adaptability and a flexible processing platform when used as a MicroBlaze. This development board is bound to multiple sets of processing peripherals. The Arty A7-100T development board features a communication powerhouse chock-full of UARTs, SPIs, I2Cs, and an Ethernet MAC. This development board also features a precise timekeeper with twelve 32-bit timers.

The Arty A7-100T Development Board is fully compatible with the high-performance Vivado® design suite. This development board is supported under the free WebPACK™ license and the designs can be implemented at no additional cost. This free license includes the ability to create MicroBlaze™ soft-core processor designs.

Features

  • 256MB DDR3L RAM with a 16-bit bus @ 667MHz
  • 16MB Quad-SPI flash memory
  • Universal Serial Bus-Joint Test Action Group (USB-JTAG) programming circuitry
  • Powered from USB or any 7V to 15V power source

Specifications

  • Xilinx Artix-7 FPGA:
    • 15,850 slices, each containing four 6-input LUTs and 8 flip-flops
    • 607.5KB of fast block RAM
    • 6 clock management tiles (CMTs), each with a phase-locked loop and mixed-mode clock manager
    • 240 Digital Signal Processing (DSP) slices
    • 65,200 Flip-Flops
    • Internal clock speeds exceeding 450MHz
    • On-chip analog-to-digital converter (XADC)
    • Programmable over JTAG and Quad-SPI flash memory
  • System connectivity:
    • 10Mbps/100Mbps Ethernet
    • USB-UART bridge
  • Interaction and sensory devices
    • 4 switches
    • 4 buttons
    • 1 reset button
    • 4 LEDs
    • 4 RGB LED
  • Expansion connectors:
    • 4 Pmod connectors
    • Arduino/ChipKit shield connector

Additional Resources

Related Products

AMD / Xilinx Artix®-7 FPGAs

理想適用於成本敏感且需要高端功能的應用。

Learn More關於AMD / Xilinx Artix®-7 FPGAs View Products與AMD / Xilinx Artix®-7 FPGAs相關

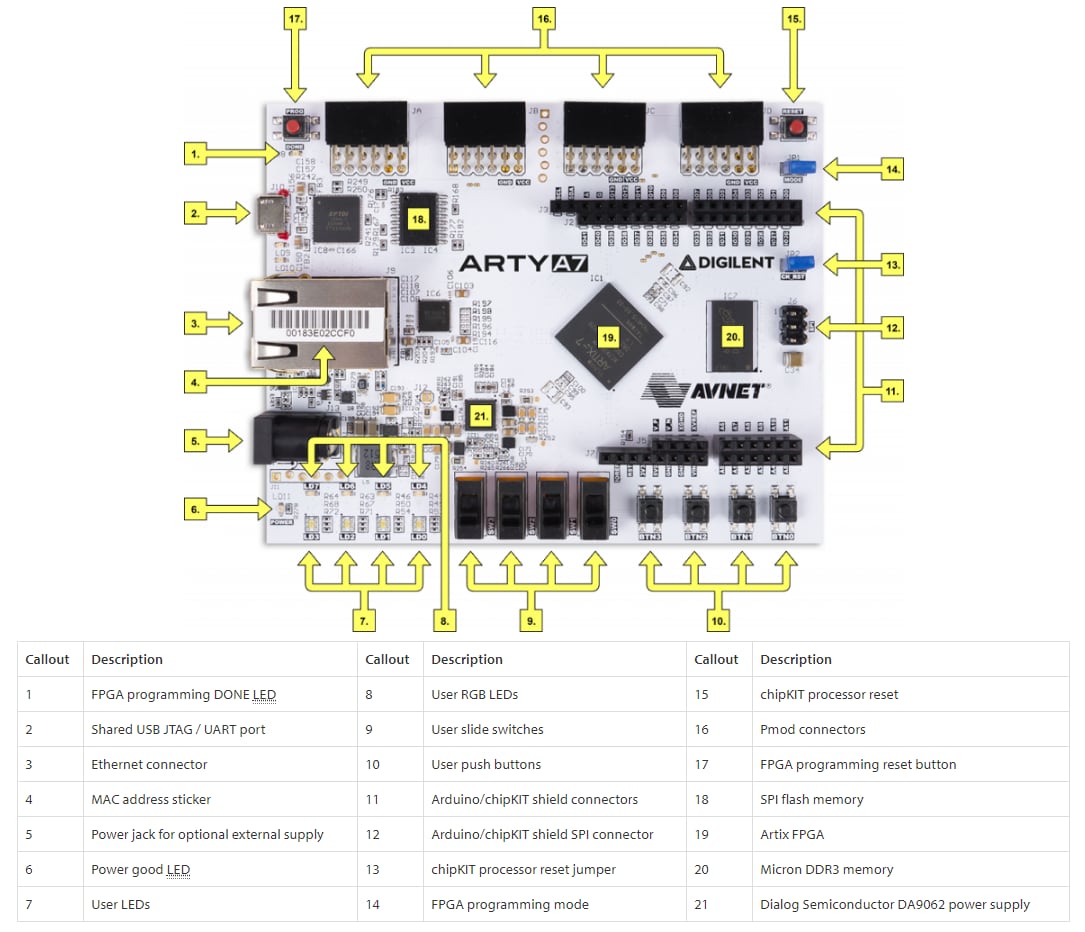

Board Layout
