Cypress MaxArias Wireless F-RAM with Gen-2 RFID

Cypress MaxArias 4- / 8- / 16-KB F-RAM secure wireless F-RAM memory solutions with EPC Gen-2 RFID access enable unparalleled RF sensitivity, read/write range, and speed. These innovative Cypress devices allow system integrators to extend their RFID capabilities to create wireless databases that can store greater amounts of information locally on high-performance RF-enabled ICs. The first products in the Cypress MaxArias family offer F-RAM memory capabilities in 4-, 8-, and 16-KB densities. Unlike EEPROMs, the MaxArias WM710xx and WM72016 feature zero power write operations. There is no power or speed penalty for executing writes into the WM72016 and WM710xx.

Also available: Cypress MaxReader Wireless Memory Development Kits are versatile development tools for design engineers to develop and thoroughly test the capabilities of Cypress's MaxArias wireless memory using both a Graphical User Interface (GUI) and Command Line Interface. The MaxReader board enables access to the full, higher-level user-memory memory capacity of the MaxArias wireless memory. The MaxReader also enables engineers to use the full write speed of MaxArias by employing the block write capability of MaxArias.

View Cypress MaxReader Wireless Memory Development Kits

Features

4/8/16-Kilobit Nonvolatile
Ferroelectric RAM
Organized as 256/512/1024 x 16 bits (WM710xx)
Organized as 1024 x 16 bits (WM72016)
Virtually unlimited read/write endurance (>1E14)
20-year data retention

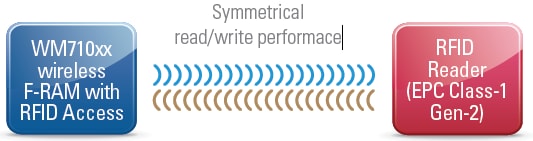

Symmetrical read/write operation
Advanced, highly reliable
ferroelectric process
EPC Global Gen-2 RFID protocol UHF frequency range (860MHz-960MHz)

Benefits

Portable data container -
Ideal for applications requiring larger memory, such as item/facility maintenance or
tags disassociated from back-end systems
Improved production efficiency - Faster provisioning enabled by higher data write speeds
Gamma stability - The only EPC Gen2 device with gamma stability for medical and bio-pharma applications
