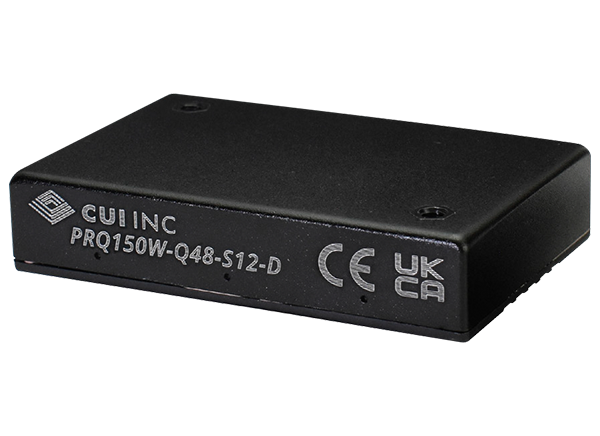

CUI Inc PRQ150W-D 150W Isolated DC-DC Converters
CUI Inc. PRQ150W-D 150W Isolated DC-DC Converters are quarter-brick converters housed in a fully encapsulated aluminum alloy case with a black plastic bottom and UL 94V-0 flammability rating. These high-power converters offer EN 62368-1 certification, efficiency up to 91%, and an ultra-wide 4:1 input range. The CUI Inc. PRQ150W-D 150W Isolated DC-DC Converters are ideal for data, telecom, robotics, and industrial applications where a large amount of power is needed in a compact package.
Features
- 1/4-brick package with an industry-standard pin-out
- 4:1 ultra-wide input voltage range
- Single regulated output
- High efficiency up to 91%
- Remote on/off control
- Output short circuit, over-current, over-voltage, and over-temperature protection
- Available with a heat sink or base plate
- EN 62368-1
- RoHS compliant
Applications
- Data
- Telecom
- Robotics
- Industrial
Specifications
- Input voltage
- 48VDC typical
- 18VDC to 75VDC range
- 5VDC to 48VDC output voltage range
- 150W isolated output
- 3.13A to 30.0A maximum output current range
- 250kHz typical switching frequency
- ±3% typical transient response
- 250mVp-p maximum ripple and noise
- 88% to 91% efficiency range
- 2200pF isolation capacitance
- Temperature ranges
- -40°C to +85°C operating
- -55°C to +125°C storage
- 5% to 95% storage humidity, non-condensing
- Dimensions
- 61.8mm x 40.2mm x 12.7mm
- 62.0mm x 56.0mm x 14.6mm with base plate
- 61.8mm x 40.2mm x 27.7mm with heatsink
- Natural convection cooling
- UL 94V-0 flammability rating
View All
CUI Inc PRQ Isolated DC-DC Converters
Quarter-brick converters offered in 75W, 100W, 150W, and 200W with a 4:1 input range.
