CUI Inc DDP2-M DC/DC Converters

CUI Inc DDP2-M DC/DC Converters are 2W converters that operate at 1500VDC isolation voltage. These DC/DC converters offer a single unregulated output and include Continuous Short-Circuit Protection (SCP). The DDP2-M converters operate within an input voltage range of 4.5VDC to 26.4VDC and an output voltage range of 3.3VDC to 24VDC. These converters are housed in an SMT8 package and operate within a temperature range of -40°C to 105°C. The DDP2-M converters are CE, UKCA, and UL/cUL safety-approved and RoHS compliant. These DDP2-M converters are suitable for ITE and industrial applications.

Features

  • 2W isolated output
  • Compact SMT package
  • Single unregulated output
  • -40°C to 105°C with derating operating temperature range
  • 4.5VDC to 26.4VDC input voltage range
  • CE, UKCA, and UL/cUL safety approvals
  • 3.3VDC to 24VDC output voltage range
  • 1500VDC isolation voltage
  • 12.8mm x 10.8mm x 6.9mm dimensions
  • Certified to IEC/EN/UL 62368-1
  • Continuous Short-Circuit Protection (SCP)
  • RoHS compliant

Applications

  • ITE
  • Industrial requirements

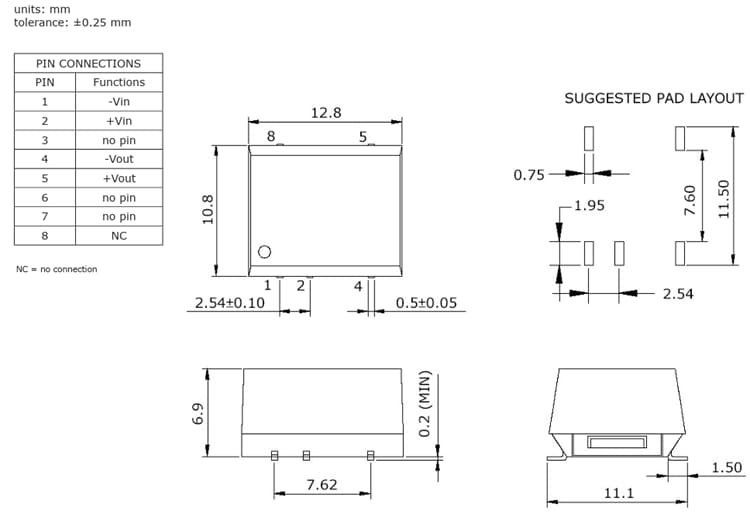

Mechanical Drawing

Mechanical Drawing - CUI Inc DDP2-M DC/DC Converters

Related Converters

CUI Inc DEP2-M DC/DC Converters

Offers 3000VDC isolation, housed in an SMT8 package operating at -40°C to 105°C temperature range.

Learn More關於CUI Inc DEP2-M DC/DC Converters View Products與CUI Inc DEP2-M DC/DC Converters相關
View Results ( 48 ) Page
零件編號 規格書 輸出電流-通道1 輸出電壓-通道1 輸入電壓 輸入電壓（最大值） 標稱輸入電壓
DDP2-12-S12-M DDP2-12-S12-M 規格書 167 mA 12 VDC 10.8 VDC to 13.2 VDC 13.2 VDC 12 VDC
DDP2-12-S15-M DDP2-12-S15-M 規格書 133 mA 15 VDC 10.8 VDC to 13.2 VDC 13.2 VDC 12 VDC
DDP2-12-S5-M DDP2-12-S5-M 規格書 400 mA 5 VDC 10.8 VDC to 13.2 VDC 13.2 VDC 12 VDC
DDP2-15-S12-M DDP2-15-S12-M 規格書 167 mA 12 VDC 13.5 VDC to 16.5 VDC 16.5 VDC 15 VDC
DDP2-15-S15-M DDP2-15-S15-M 規格書 133 mA 15 VDC 13.5 VDC to 16.5 VDC 16.5 VDC 15 VDC
DDP2-15-S5-M DDP2-15-S5-M 規格書 400 mA 5 VDC 13.5 VDC to 16.5 VDC 16.5 VDC 15 VDC
DDP2-24-S12-M DDP2-24-S12-M 規格書 167 mA 12 VDC 21.6 VDC to 26.4 VDC 26.4 VDC 24 VDC
DDP2-24-S15-M DDP2-24-S15-M 規格書 133 mA 15 VDC 21.6 VDC to 26.4 VDC 26.4 VDC 24 VDC
DDP2-24-S5-M DDP2-24-S5-M 規格書 400 mA 5 VDC 21.6 VDC to 26.4 VDC 26.4 VDC 24 VDC
DDP2-5-S12-M DDP2-5-S12-M 規格書 167 mA 12 VDC 5 VDC to 5.5 VDC 5.5 VDC 5 VDC
