CITEL CWMJ8 SMD Data Line Outdoor Category 6 POE SPD
Citel CWMJ8 SMD Data Line Outdoor Category 6 POE Surge Protection Device (SPD) features a 16kA surge rating (8/20us), data transmission speeds up to 5Gbps, and hybrid SAD-GDT technology. UL94V-0 polycarbonate material provides an IP66, NEMA 6 rating. The surface-mount SPD is designed to be installed in very close proximity to the sensitive equipment that is being protected. The CWMJ8 is wired in series or parallel with the load.
Features
- UL497B listed
- Hybrid SAD-GDT technology
- 16kA surge rating, 8/20us
- Up to 5Gbps data transmission speed
- IEEE 802.3bt POE++, UPoE to 90W
- IP66, NEMA 6 enclosure
- Shielded RJ45 connection
- Flange/pole mounting
- UL94V-0 flammability rating
- Polycarbonate material
- RoHS compliant
Specifications
- 48V voltage rating
- 8W+shield+ground wires
- 1.6A maximum line current
- 95W power rating
- -35°C to +85°C ambient temperature range
- 70V residual voltage
Videos

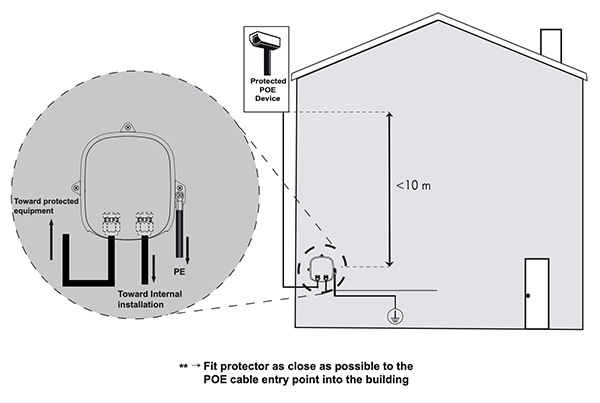

Application Example
Additional Resources
