Arduino Portenta H7 Lite Connected

Arduino Portenta H7 Lite Connected offers the computational power of the Portenta H7 for AI applications and low-latency control solutions, plus a module designed to be more cost-effective by removing the high-resolution video interface feature. The Portenta H7 Lite Connected fills the gap between the full H7 and the H7 Lite versions by integrating wireless connectivity. The device provides another option for Arduino Pro users to build the ideal solution with the right combination of performance and simplicity.

The Arduino Portenta H7 Lite Connected simultaneously runs high-level code and real-time tasks due to its two processors.

The Arduino Portenta H7 Lite Connected has a main processor, the STM32H747 dual core, including a Cortex® M7 running at 480MHz and a Cortex® M4 running at 240MHz. The two cores communicate through a Remote Procedure Call mechanism that seamlessly enables calling functions on the other processor.

Both processors share all the in-chip peripherals and can run:
• Arduino sketches on top of the Arm® Mbed™ OS
• Native Mbed™ applications
• MicroPython / JavaScript via an interpreter
• TensorFlow™ Lite

Features

Dual-Core with two best-in-class processors in one, running parallel tasks
AI on the edge that is so powerful it can run AI state machines

Highly customizable in volumes
High-level programming language support (Micropython)

Applications

High-end industrial machinery
Laboratory equipment
Computer vision
PLCs

Robotics controllers
Mission-critical devices
High-speed booting computation (ms)

Specifications

8MB /16MB Memory
ATECC608 Security
Li-Po Single Cell 3.7V, 700mAh minimum power

Ethernet PHY / Wi-Fi® / BLUETOOTH® Low Energy (BLE 5 via Cordio stack, BLE 4.2 via Arduino Stack) connectivity

Videos

PCB Layout

Wake Up Signals/External Relay Commands

Application Circuit Diagram - Arduino Portenta H7 Lite Connected

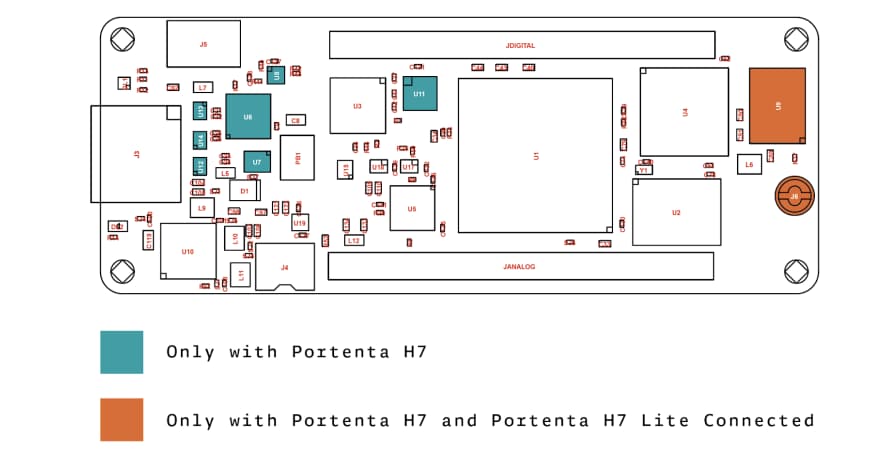

Board Topology

Mechanical Drawing - Arduino Portenta H7 Lite Connected

Additional Resources

Schematics
