Analog Devices / Maxim Integrated MAXREFDES82智能力量感應器參考設計
Maxim MAXREFDES82智能力量感應器參考設計採用下一代工業、智慧型力量感應器。 MAXREFDES82安裝在一個連至多通道24位元類比至數字轉換器之負重傳感器的扇形齒輪上，可感應置於平台上的物體重量和重心。 刻度尺提供達到780克的全刻度回應。 用戶介面主動顯示平台上物體的重心，以及測得的總重量。 除用作智能力量感應器之外，該設計還可充分配搭具有力量感應功能的加固型觸控介面。 該系統正常運作時消耗電流低於50mA，具有USB介面可用於快速評估和整合。
特點
- STMicroelectronics STM32F429ZIT6 STM32 F4 high-performance ARM Cortex-M4 Microcontroller w/2MB flash
- Analog Devices MAX11254ATJ+ delta-sigma analog-to-digital converter (ADC)
- Analog Devices MAX8574EUT+ high-efficiency LCD boost converter with True Shutdown
- Analog Devices MAX6071AAUT18+ High-Performance Voltage Reference, 1.8V
- Analog Devices MAX6071AAUT41+ High-Performance Voltage Reference, 4.096V
- ISSI IS42S16400J 64M (4Mx16) 3.3V 143MHz SDR SDRAM
- Newhaven Display NHD-3.5-320240MF-ATXL#-1 TFT (Thin-Film-Transistor) 320x240 Color Liquid Crystal Display Module
- 3D human interface input
- High precision weigh scale
- Low power ADC
- Compact
- Rugged, cost-effective, flexible 3D human-interface input device
- High precision, high-resolution measurements
- Fast, low-power data acquisition
應用
- 3D human interface input device
- Battery-powered instrumentation
- Industrial control and measurement
影片
On The Board
ISSI 3.3V Single Data Rate (SDR) Synchronous DRAM
Provides densities ranging from 16Mbit to 512Mbit in 1Mx16, 4Mx16 and 8Mx16 organizations.
Newhaven Display COG & TFT LCD Displays
Wide range of ISO 9001 certified, RoHS compliant displays to suit a variety of applications.

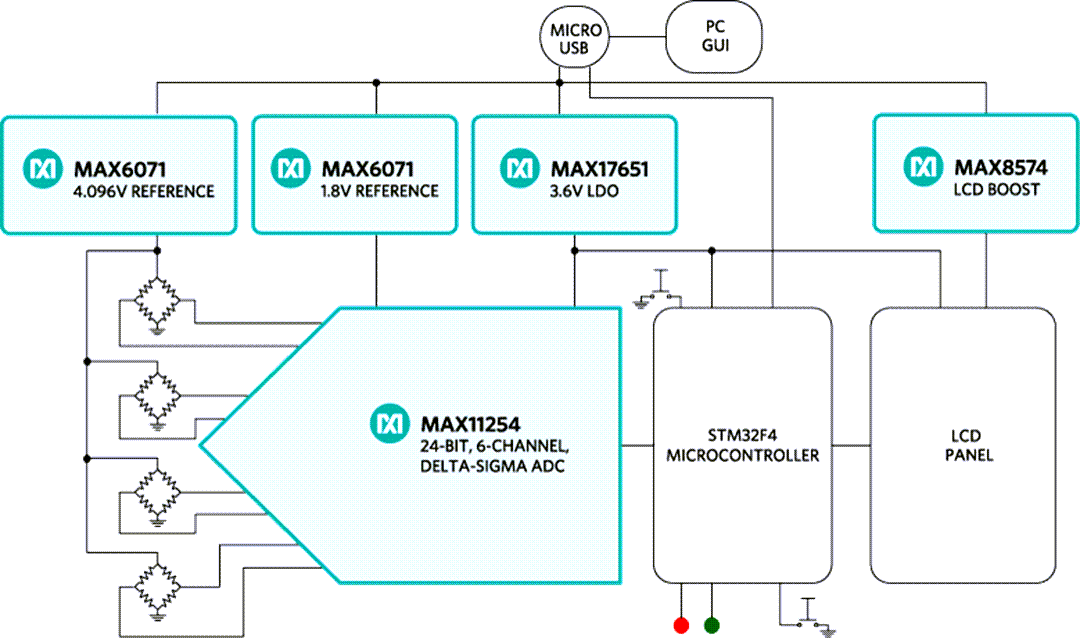

Block Diagram
發佈日期: 2016-05-06
