Analog Devices / Maxim Integrated MAX20337 Evaluation Kit
Analog Devices Inc. MAX20337 Evaluation Kit is a fully assembled and tested circuit board that evaluates the MAX20337 beyond-the-rails SPDT analog switches. The MAX20337ENT+ SPDT Analog Switch is installed on the MAX20337 Evaluation Kit.
Features
- USB power option
- SMA and 3.5mm audio jack connectors
- Directly evaluate AC characteristics through SMA connectors
- Quickly evaluate audio performance with 3.5mm audio jack connectors
- Proven PCB layout
- Fully assembled and tested
Required Equipment
- MAX20337 Eval kit
- USB Cable or Power Supply
- Audio source (e.g., MP3 player, computer, etc.)
- External speakers or headphones with 3.5mm audio jack

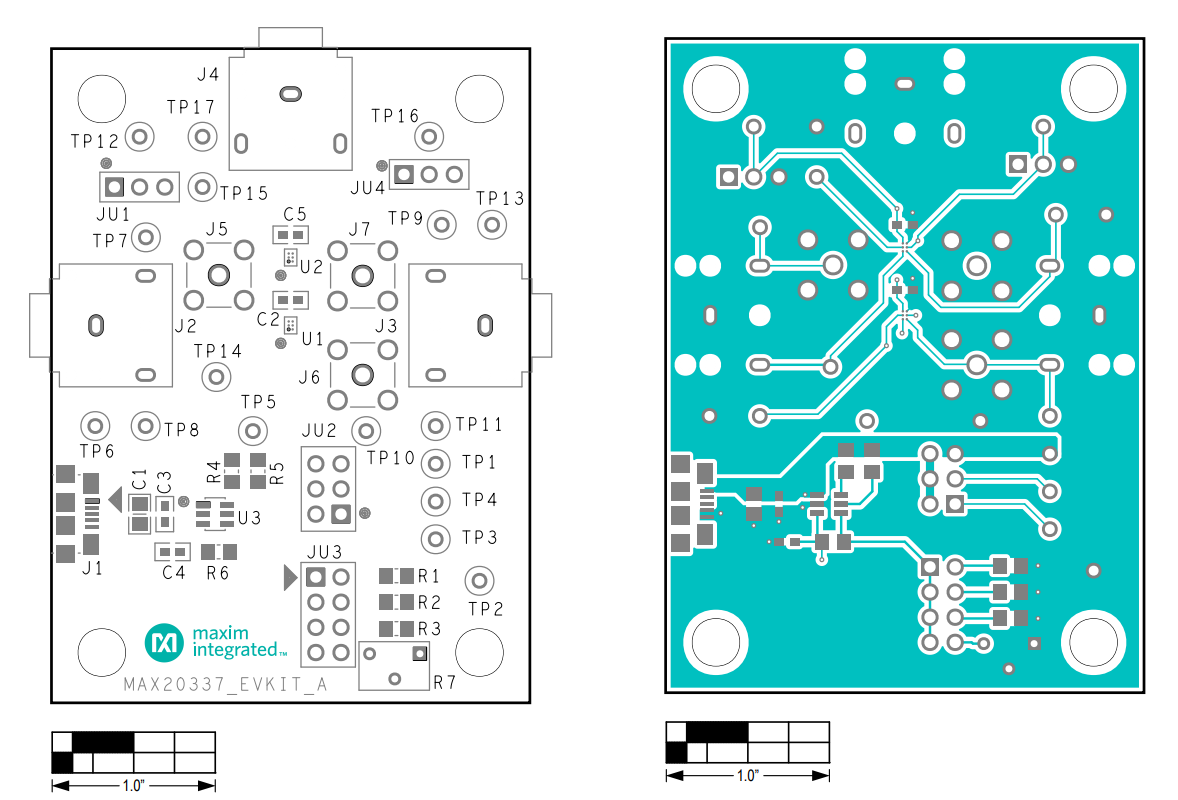

PCB Layout
