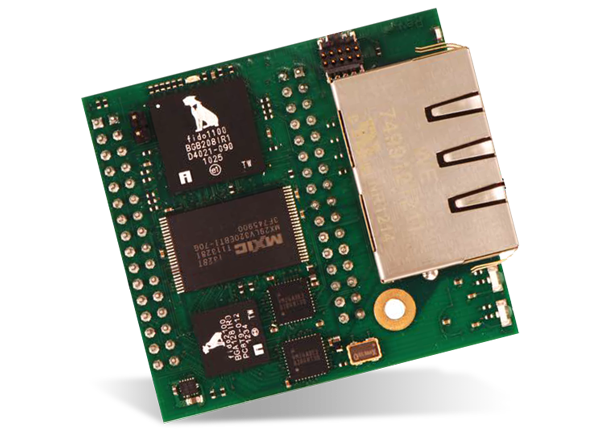

Analog Devices Inc. RAPID-NI-V2005 EtherNet/IP Interface Module

Analog Devices RAPID-NI-V2005 EtherNet/IP Interface Module Network with DLR enables designers to implement the EtherNet/IP communications protocol into an end product using a UART interface. The module provides all the elements needed to implement the communications protocol including the communications controller, protocol stacks, Flash, RAM, and analog driver.

Features

  • fido1100 Communication Controller
  • fido2100 2-port Ethernet switch
  • 4MB Flash
  • 8MB SDRAM
  • Power Supply
  • UART Interface
  • 8KB EEPROM
  • JTAG Interface
  • 10/100 Ethernet Interface

Diagram

Analog Devices Inc. RAPID-NI-V2005 EtherNet/IP Interface Module
